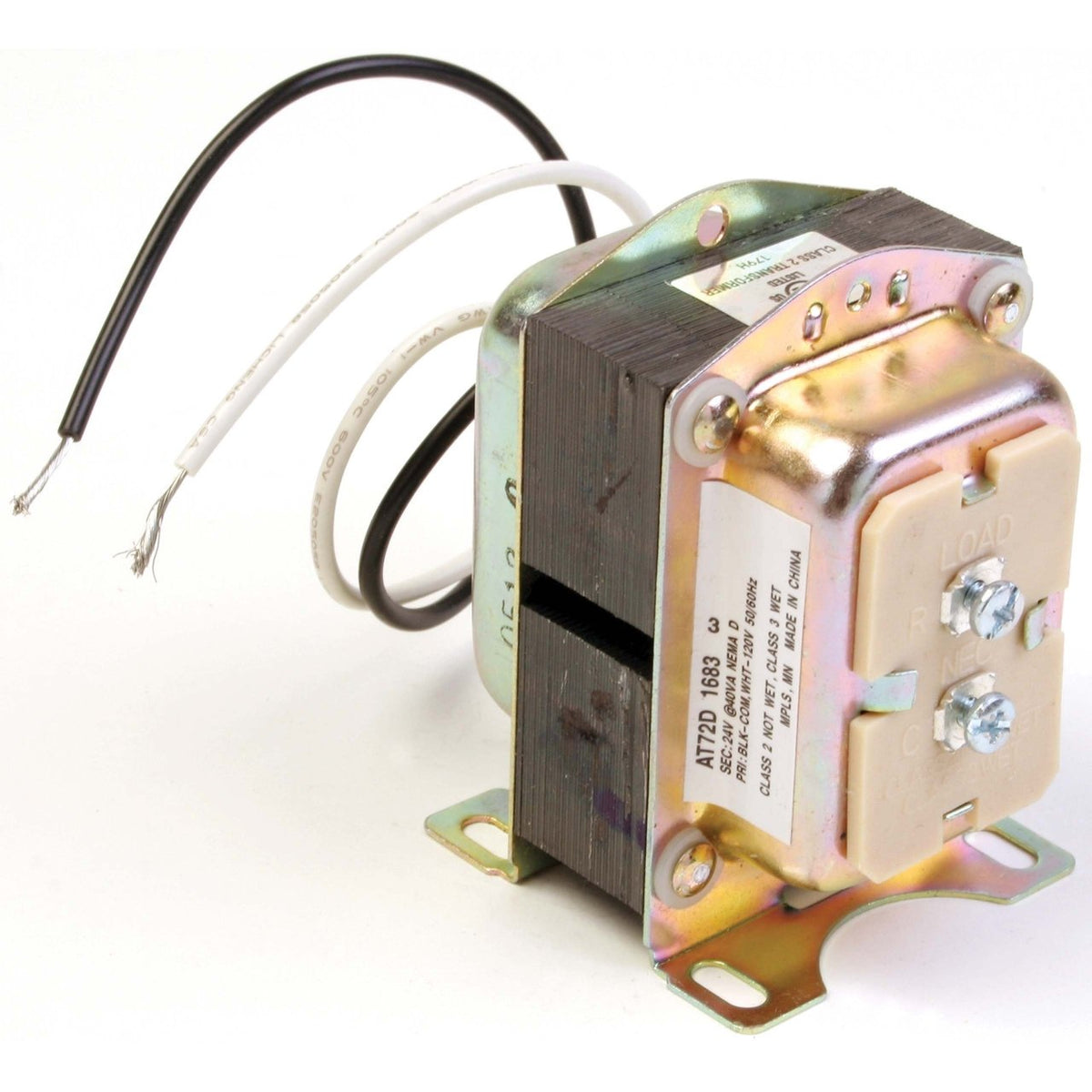

Resideo AT72D1725/U Transformer, 40 VA, 120 V, Combination Mount
Resideo

Resideo AT72D1725/U Transformer, 40 VA, 120 V, Combination Mount

Item #
HONE-AT72D1725/U
Mfr. part #
AT72D1725/U
UPC
085267124188
$46.47
Each
Backorder – ships from manufacturer
Estimated delivery: –

Special order: typically ships in 3–4 weeks. Contact us for an exact lead time.

5% off at checkout with code SAVE5

Buying for a business? Tax-exempt purchasing and Net 30 terms available. Open a trade account

  • Ships from Seattle, WA
  • 30-day returns on unused items. Details
  • Secure checkout
Need help with this part?
(404) 678-9908 Chat with a product specialist Request a quote
BrandResideo
Manufacturer part #AT72D1725/U
UPC085267124188

Tradeline 40 VA transformer, 120 V 50/60 Hz, with 9 in primary leads, secondary terminals and combination mounting.

Specifications

  • Brand: Resideo (Honeywell Home)
  • Manufacturer Part #: AT72D1725/U
  • Application: 40 VA transformers power 24 V systems including thermostats, gas valves and relays.
  • NEMA Rating: Yes
  • Primary Connection Size: 9 in, 229 mm
  • Primary Connection Type: Leadwires: Black and White
  • Primary Input Voltage: 120 V ac
  • Secondary Connection Type: (2) screw terminals
  • Secondary Open Circuit Voltage: 26.5 V.O.C.
  • VA Rating: 40 VA
  • Frequency: 50 Hz; 60 Hz
  • Approvals and Standards: UL Component Recognized, CSA Certified, NEC Class 2
  • Ambient Operating Temperature (Max): 105 °F, 41 °C
  • Ambient Operating Temperature (Min): -20 °F, -29 °C
  • Product Height: 6.44 in, 164 mm
  • Product Width: 3 in, 76 mm
  • UPC: 085267124188
  • Country of Origin: CN
  • Category: Transformers
