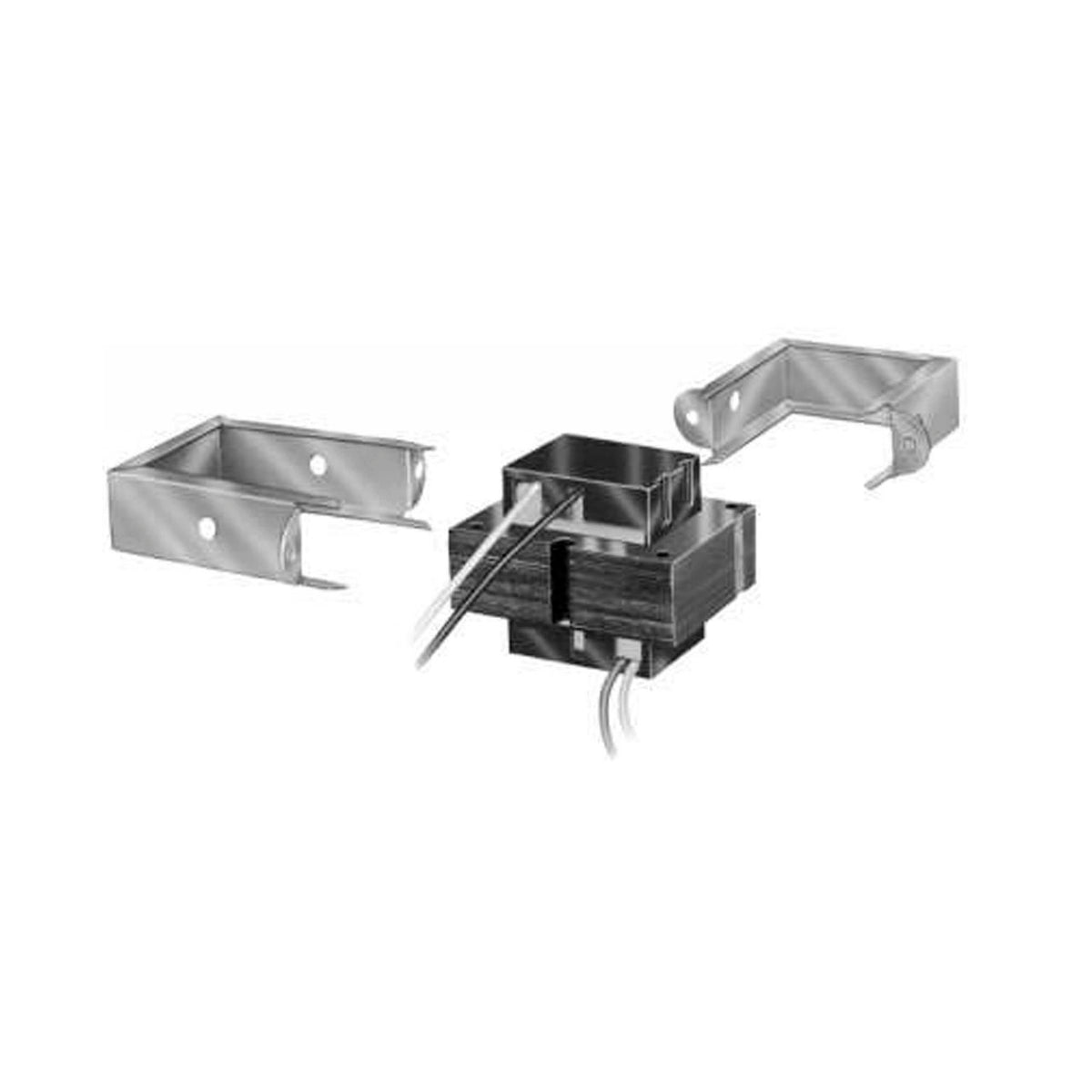

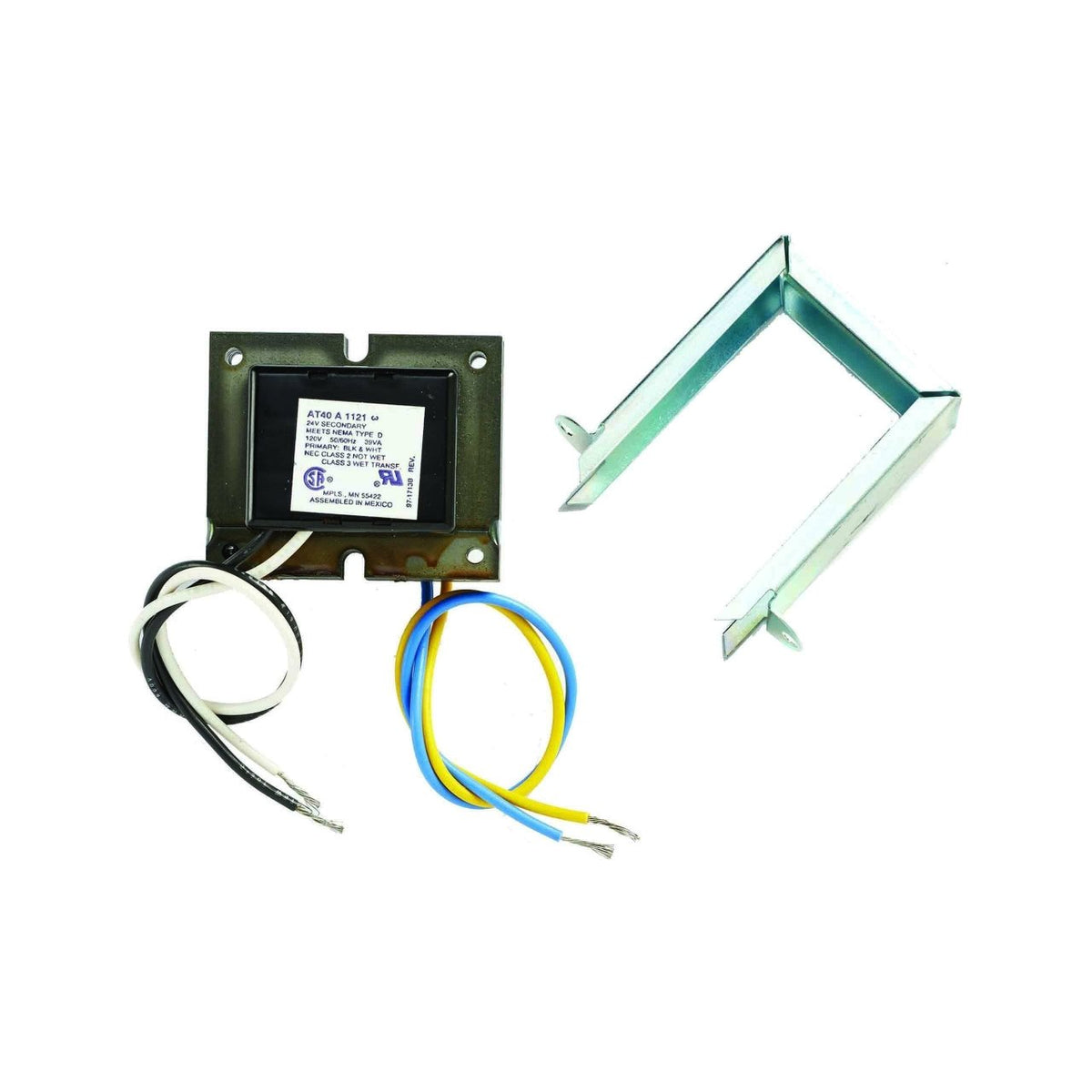

Resideo AT40A1139/U Transformer, 240 V, Dual Foot Mount for Vertical or Horizontal Mounting

Tradeline 240 V transformer with two sets of foot mounts for vertical or horizontal mounting in enclosures.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: AT40A1139/U
• NEMA Rating: Yes
• Primary Connection Size: 9 in, 229 mm
• Primary Input Voltage: 120 V ac
• Temperature Rating (Max): 105 °F, 41 °C
• Temperature Rating (Min): -20 °F, -29 °C
• Secondary Connection Size: 9 in, 229 mm
• Secondary Connection Type: Color coded primary and secondary Leadwires
• Secondary Open Circuit Voltage: 26.5 V.O.C.
• VA Rating: 40 VA
• Frequency: 50 Hz; 60 Hz
• Approvals and Standards: CSA Certified, NEC Class 2, UL Component Recognized
• Color: Black
• Ambient Operating Temperature (Max): 105 °F, 41 °C
• Ambient Operating Temperature (Min): -20 °F, -29 °C
• Product Height: 2.1 in, 53 mm
• Product Length: 2.63 in, 67 mm
• Product Weight: 1.8 lb
• Product Width: 2.2 in, 56 mm
• UPC: 085267035743
• Country of Origin: CN
• Category: Transformers
