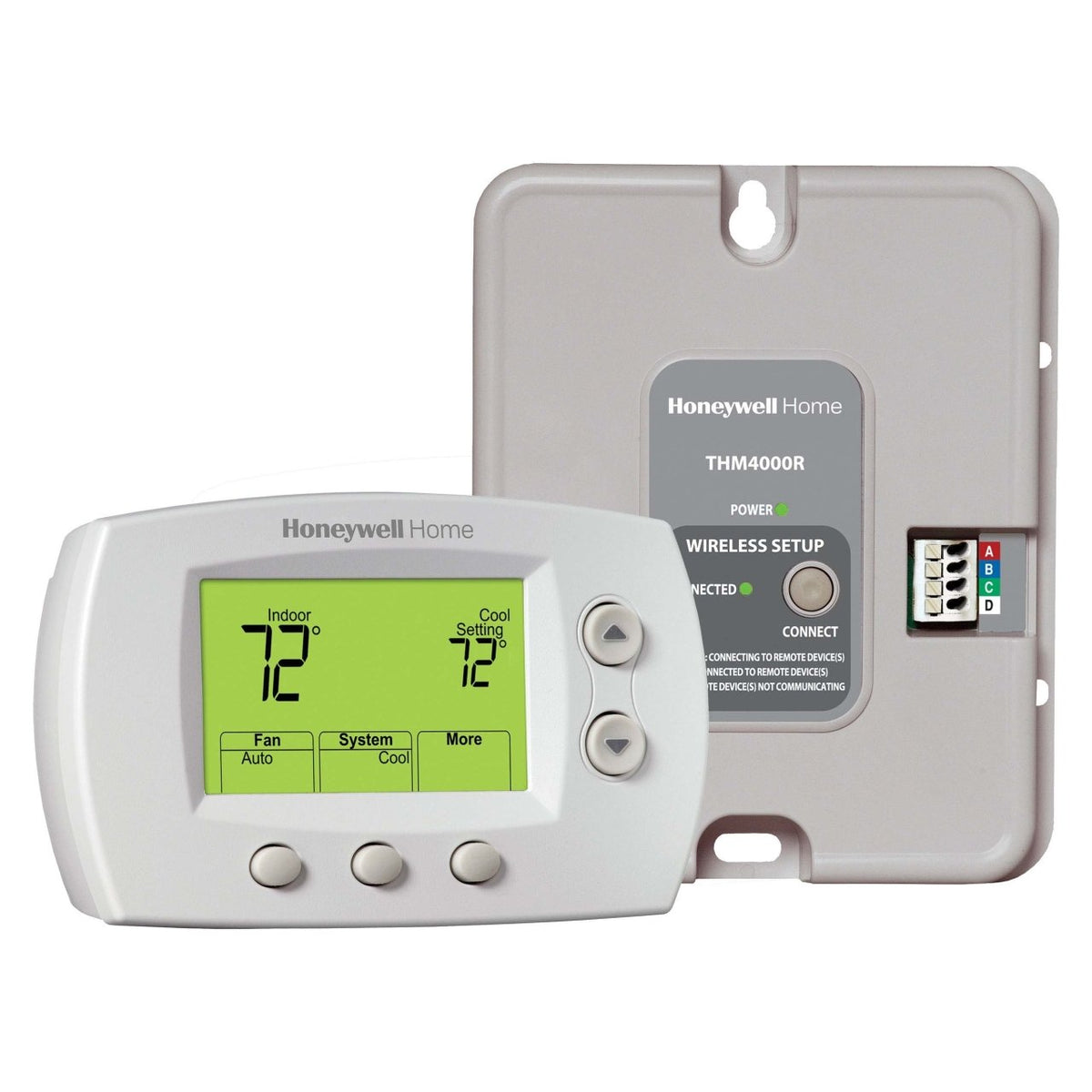

Honeywell Home YTH5320R1025/U Wireless Zoning Adapter Kit with Wireless FocusPRO Non-Programmable Thermostat

Item #: HONE-YTH5320R1025/U
Mfr. part #: YTH5320R1025/U
UPC: 085267331289

$281.36

Free shipping on orders $99+
30-day returns on unused items. Details
Secure checkout

Shipping details

Shipping weight: 1.5 lb
Box size: 11.35 × 7.1 × 2.85 in

Need help with this part?

(404) 678-9908 Chat with a product specialist Request a quote

Brand	Honeywell Home
Manufacturer part #	YTH5320R1025/U
UPC	085267331289

Wireless zoning adapter kit containing a wireless FocusPRO non-programmable thermostat and a wireless adapter.

Features

Smart Home Integration: When used with a RedLINK Gateway it works on the TCC app and has the Smart Home partners for that app
Large display size 5.09 sq. in

Specifications

Brand: Resideo (Honeywell Home)
Manufacturer Part #: YTH5320R1025/U
Application: Conventional systems, Heat Pump systems
Thermostat Type: Digital, Low Voltage, RedLINK
Stages: Up to 3 Heat/2 Cool Heat Pump Systems, Up to 2 Heat/2 Cool Conventional Systems
Display Type: LCD Screen
Display Size: 7.27 sq in
Touchscreen: No
Display Language: English
Displayed Information: Indoor Temperature, Status Display
Modes of Operation: Heat, Cool, Auto, Off, Emergency Heat
Program Type: Manual / Not Programmed
Energy Star Certified: No
Alerts and Reminders: Battery Replacement
Heat-Cool Changeover: Auto, Manual
Power Supply: Battery
Battery Type: Alkaline
Power Source: Battery Operated
Battery Life: 1 Year
Battery Size: AA
Warranty: 5 Years
Includes: TH5320R1002 Wireless FocusPRO® Non-Programmable Thermostat, THM4000R1000 Wireless Adapter
Communication Type: RedLINK
WiFi: No
WiFi Specifications: Internet Gateway THM6000R7001/U Provides WiFi Capabilities
Z-Wave Specifications: Not Applicable
RedLINK: Yes
Color: Premier White®
Sensor Type: Thermistor
Ambient Operating Temperature (Max): 102 °F, 39 °C
Ambient Operating Temperature (Min): 37 °F, 2.8 °C
Operating Relative Humidity (Max): 90% RH non-condensing
Operating Relative Humidity (Min): 5% RH non-condensing
Backlight Options: Backlight
Button Color: Gray
Running Current: 1.0 A
Electrical Connection Type: Screw terminals
Mounting Type: Horizontal Mount
Number of Fan Speeds: 1
Power Supply Frequency: 50 Hz, 60 Hz
Set point Temperature (Max): Heating: 90 °F, Cooling: 99 °F, Heating: 32 °C, Cooling: 37 °C
Set point Temperature (Min): Heating: 40 °F, Cooling: 50 °F, Heating: 4.5 °C, Cooling: 10 °C
Shipping and Storage Temperature (Max): 120 °F, 49 °C
Shipping and Storage Temperature (Min): -20 °F, -29 °C
Mounting Location: Wall, Internal
Product Height: 3.56 in, 91 mm
Product Width: 5.81 in, 147 mm
Product Depth: 1.5 in, 38 mm
UPC: 085267331289
Country of Origin: MX
Category: Non-Programmable Thermostats
