Description

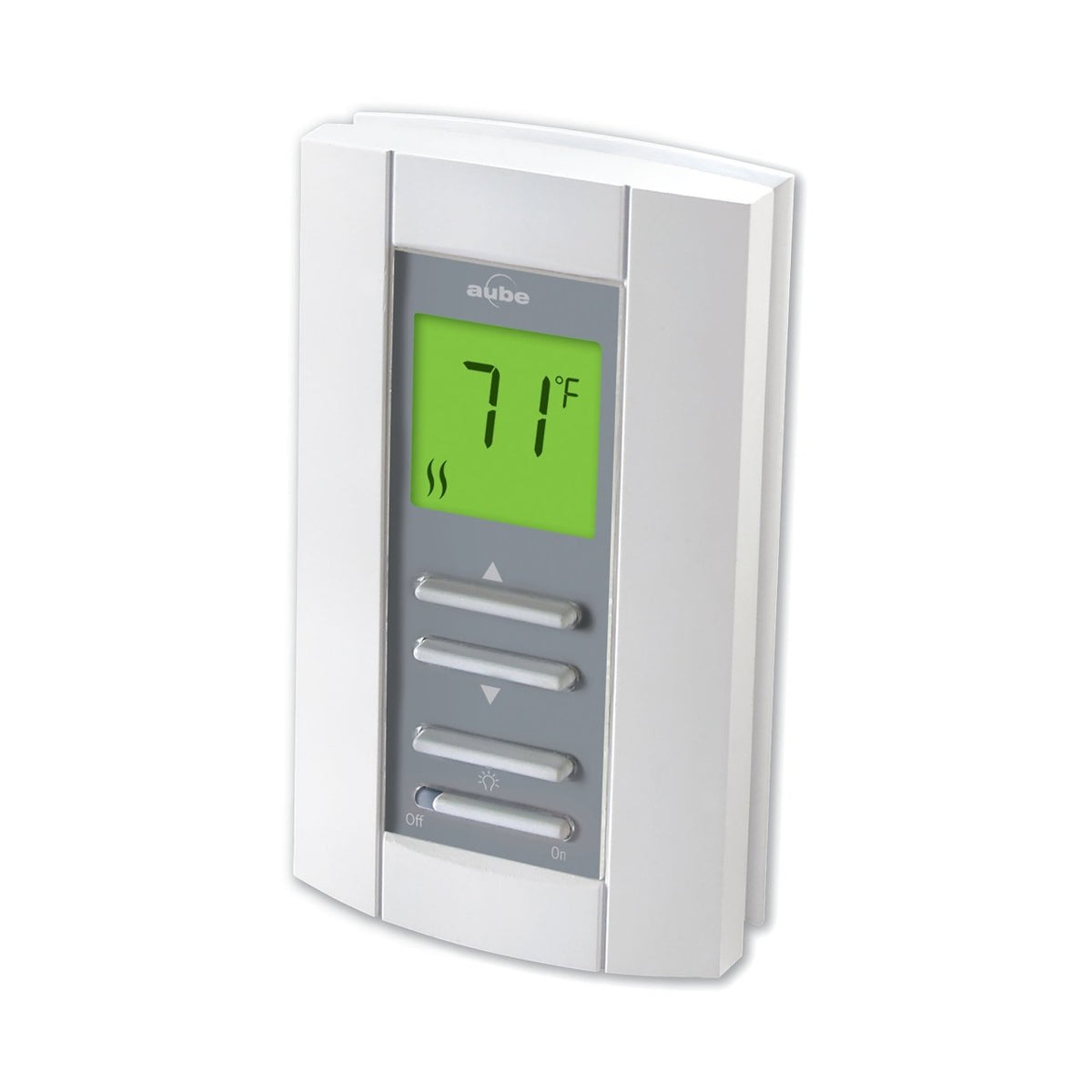

Low voltage non-programmable thermostat with floor temperature sensor for ambient or floor control, rated 0.5 A at 24 V, R, C, W terminals, 15-minute cycles, backlit.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: TH114-AF-024T/U
- Application: 24 Vac systems, Gas, Oil, Electric Warm Air, Hot water Coil, Gas, Oil, Electric Hydronic Systems, Steam Systems, Gravity Systems
- Thermostat Type: Low Voltage, Non programmable
- Smart Home Integration: No
- Display Type: LCD Screen
- Display Size: 10 sq in
- Displayed Information: Indoor Temperature, Heating Intensity Indicator
- Modes of Operation: Heat
- Program Type: Manual / Not Programmed
- Power Supply: Hardwired
- Frequency: 50 Hz, 60 Hz
- Warranty: 3 Years
- Includes: Aube AC112-01 North American Sensor, 15 feet (4.6 m)
- For Use With: Aube RC840/RC840T Series Electromechanical Relays; Aube AC112-01 North American Sensor, 15 feet (4.6 m)
- Z-Wave Specifications: Not Applicable
- RedLINK: No
- Color: White
- Sensor Type: Thermistor
- Ambient Operating Temperature (Max): 122 °F, 50 °C
- Ambient Operating Temperature (Min): 32 °F, 0 °C
- Differential Temperature: ± 1 °F, ± 0.5 °C
- Backlight Options: Backlight Button
- Temperature Accuracy: 0.9, 0.5
- Electrical Connection Type: Screw terminals
- Mounting Type: Vertical Mount
- Number of Fan Speeds: 2
- Set point Temperature (Max): Room Temp: 86 °F, Room Temp 30 °C, Floor Temp: 104 °F, Floor Temp: 40 °C
- Set point Temperature (Min): Room Temp: 40 °F, Room Temp: 5 °C, Floor Temp: 40 °F, Floor Temp: 5 °C
- Switch Type: External electromechanical relay
- Product Height: 4.9 in, 2.8 mm
- Product Length: 2.8 in, 70 mm
- Product Width: 0.9 in, 23 mm
- Product Weight: 1 lb
- Product Depth: 1.1 in
- UPC: 775264925061
- Country of Origin: CN
- Category: Non-Programmable Thermostats
