Name: Honeywell Home TH1100DV1000/U PRO 1000 Vertical Heat Non-Programmable Thermostat
Brand: Honeywell Home
SKU: HONE-TH1100DV1000/U
Price: 40.70 USD
Availability: InStock

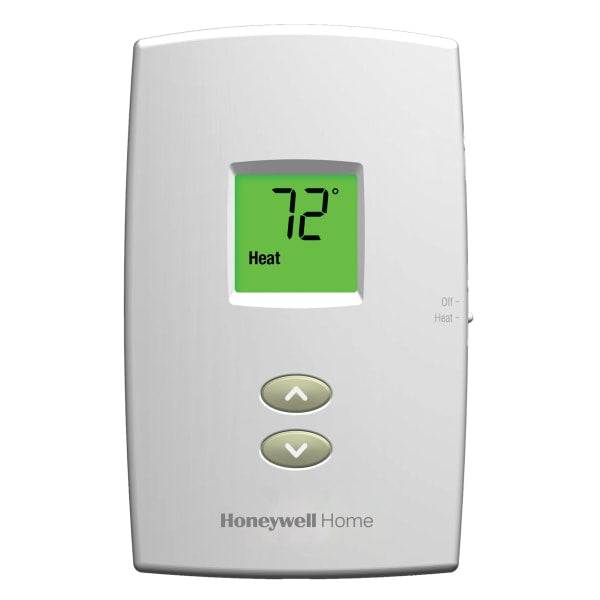

PRO 1000 Vertical Heat Non-Programmable Thermostat

Resideo PRO 1000 Vertical Heat Non-Programmable Thermostat

Roll over image to zoom in Click on image to zoom

Frequency	50 Hz,60 Hz
Electrical Ratings	20 to 30 Vac or 750 mV
Operating Humidity	5 to 90% RH, non-condensing
Mounting	Vertical
Application	Heat Only
Dimensions	4 11/16 in. High X 2 7/8 in. Wide X 1 1/8 in. Deep
Stages	1 Heat
Switch Positions (System)	HEAT-OFF
Power Method	Dual Powered: Battery or Hardwire
Color	Premier White®
Terminal Designations	R, C, W,
Display Size	1.32 sq in.
Changeover	Manual
Setting Temperature Range (F)	Selectable Heat: 40 F to 90 F or 35 F to 90 F
Cycles per Hour	Heating 2-6 CPH
Heat Current	0.02 A to 1.0 A running

Installation Guide for PRO TH2000DV/TH1000DV Vertical Series (English, French, Spanish) PDF ↗
Operating Manual for PRO1000, PRO2000 Non-Programmable Vertical Mount (English, French, Sp PDF ↗
Product Information for PRO 1000 Series Non- Programmable Thermostat (English, French, Spa PDF ↗

The Honeywell Home TH1100DV1000/U is a PRO 1000 wall thermostat. It is rated for heat only. The case is the vertical version — vertical and the other orientation are electrically the same thermostat in a different body, so pick the one that matches the footprint and the wire opening already in the wall.

Non-programmable. One setpoint, changed by hand. That is the right choice for a rental, a shop, a space on a fixed occupancy, or any job where a schedule would just get overridden. Fewer things to explain at handover, and nothing to reprogram after a power event.

Where it sits in the range. Resideo builds these in tiers, and the tier number is the amount of control you get, not the build quality. T1 and PRO 1000 are single-stage and non-programmable — set it and leave it. T3 and PRO 3000 add a digital display and more staging. T4 and PRO 2000 add scheduling. T6 covers multi-stage and heat pump work, with a Smart version that adds Wi-Fi. T10 Pro is the top of the line, with RedLINK and remote room sensing. PRO 1000, PRO 2000 and PRO 3000 are the older names for the same tiers as T1, T4 and T3 — if you are matching what came out of the wall, the PRO number and the T number can be the same generation of product under two labels.

Before you order. Match the thermostat to the equipment, not to the room: count the heating and cooling stages the system actually has, and confirm whether it is a heat pump or a conventional system, because the two wire differently at the thermostat. A unit rated for more stages than you have will work; one rated for fewer will not run the equipment you own. If you are replacing a Honeywell Home unit, the part number carries over — Honeywell Home thermostats are made by Resideo, and the legacy numbering is the same.

Brand: Honeywell Home
Manufacturer Part #: TH1100DV1000/U
Category: Thermostats
Shipping Weight: 0.5 lb

Replacement

The manufacturer lists the following model as the current replacement:

Honeywell Home TH1110U4000/U FocusPRO 100 Non-Programmable Thermostat, 1 Heat/1 Cool

Full Specifications

WiFi	No
Color	Premier White®
Includes	Thermostat; Wall Anchors; Screws; Batteries; Literature
Stages	1 Heat
Modes of Operation	Heat
Program Type	Manual / Not Programmed
Fan Function	Cycled; Continuous
Alerts and Reminders	Battery Replacement
Display Type	LCD Screen
Energy Star Certified	No
Power Source	Hardwired; Battery Operated
Battery Type	Alkaline
Product Height	4.69 in; 120 mm
Product Width	2.88 in; 74 mm
Product Depth	1.13 in; 29 mm
Warranty	2 Years
