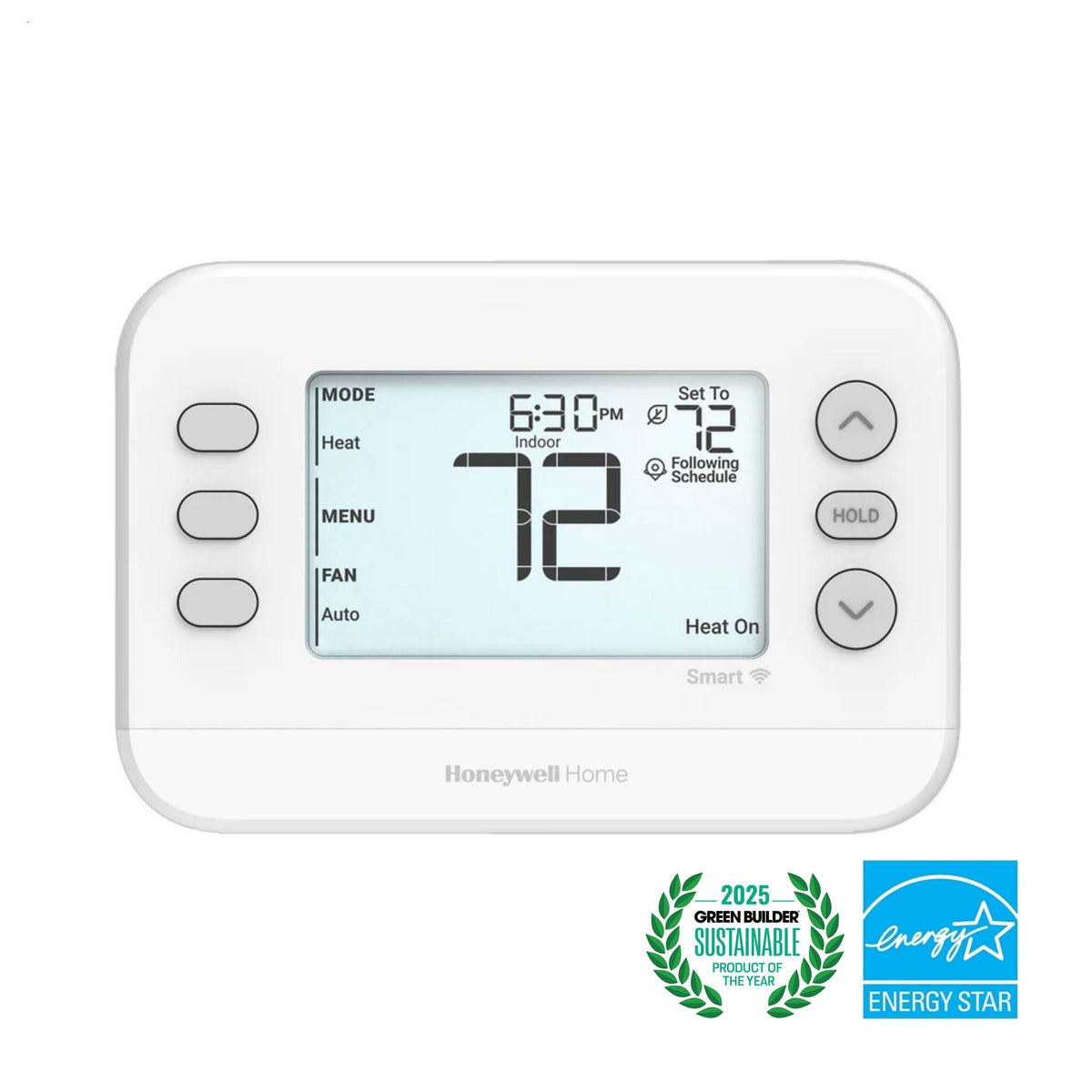

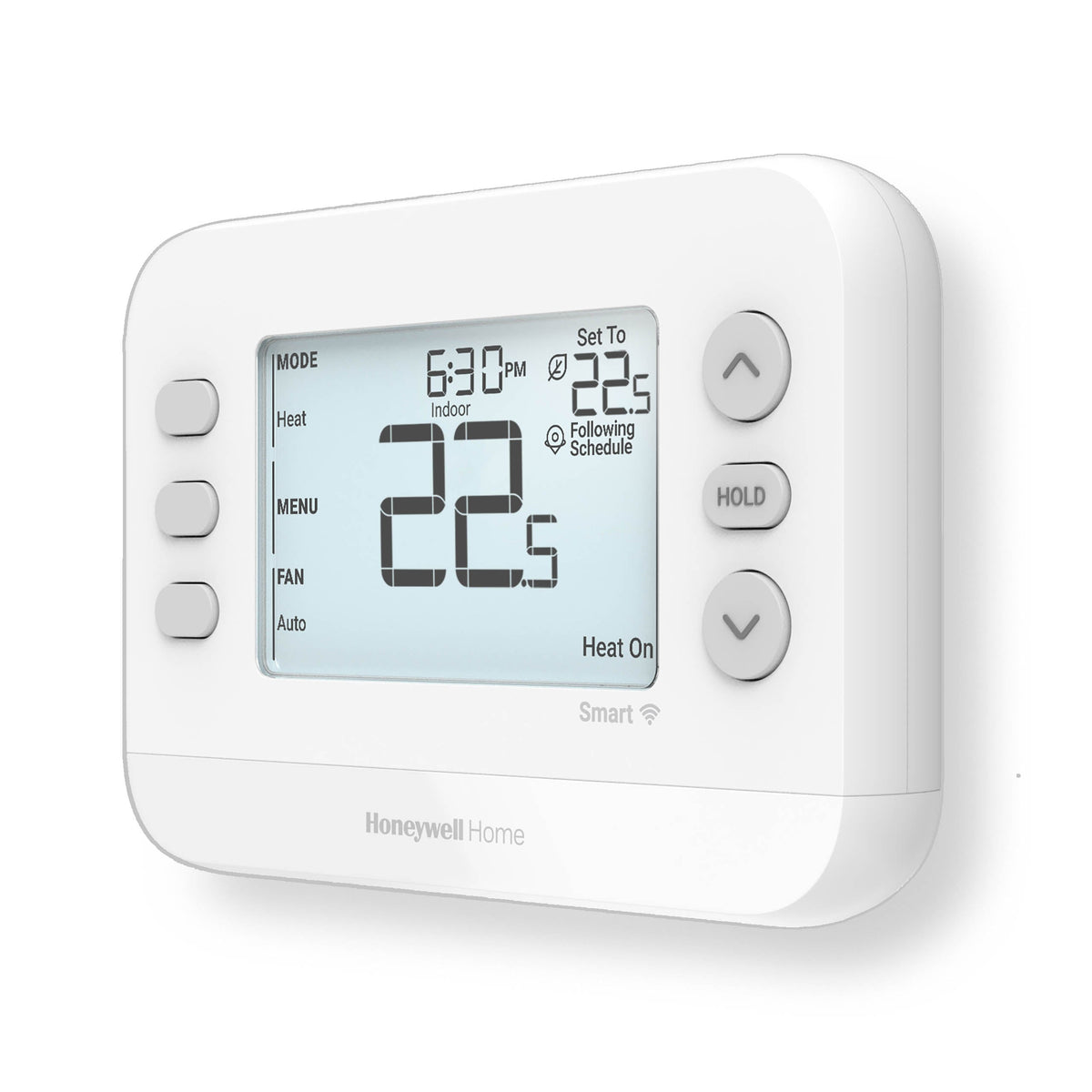

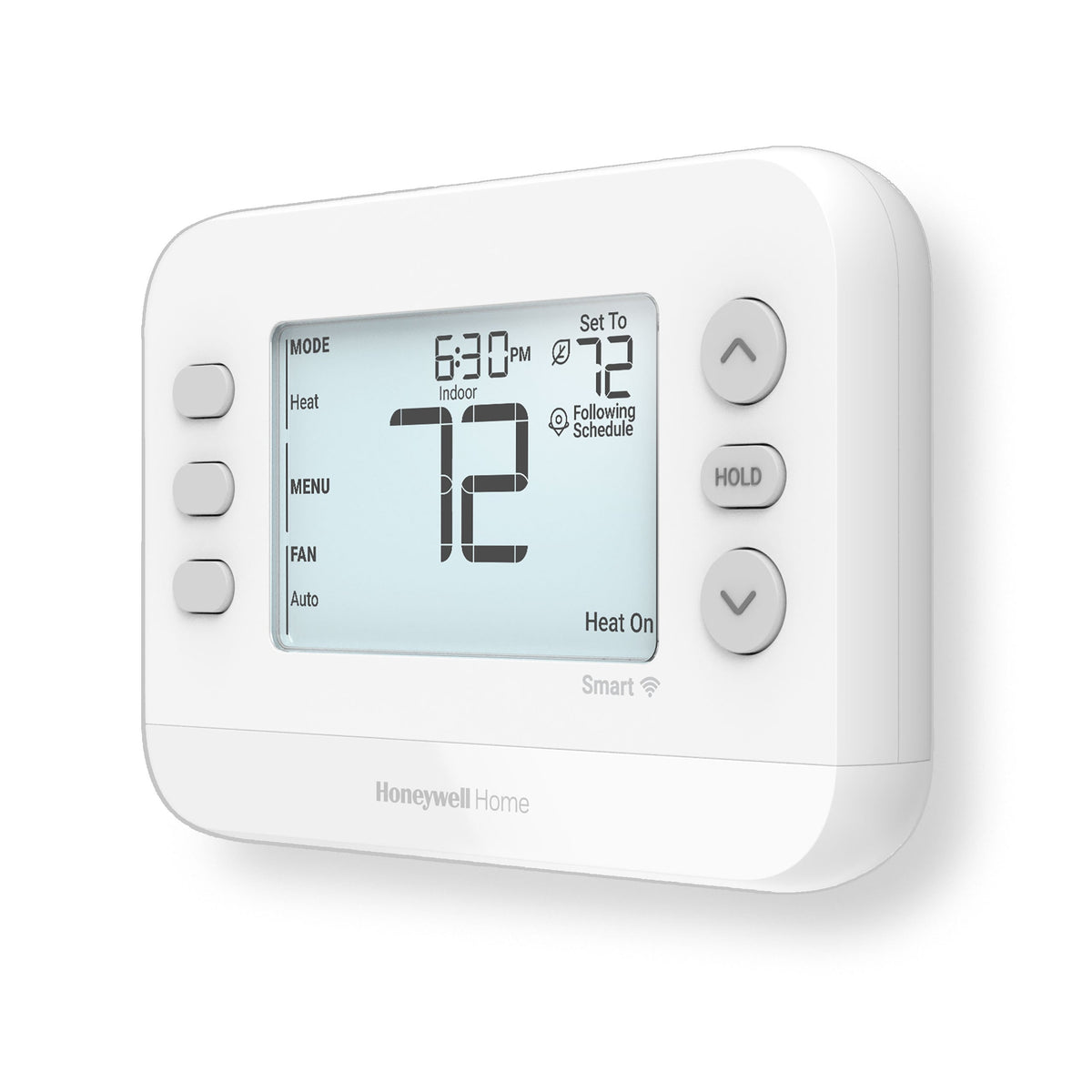

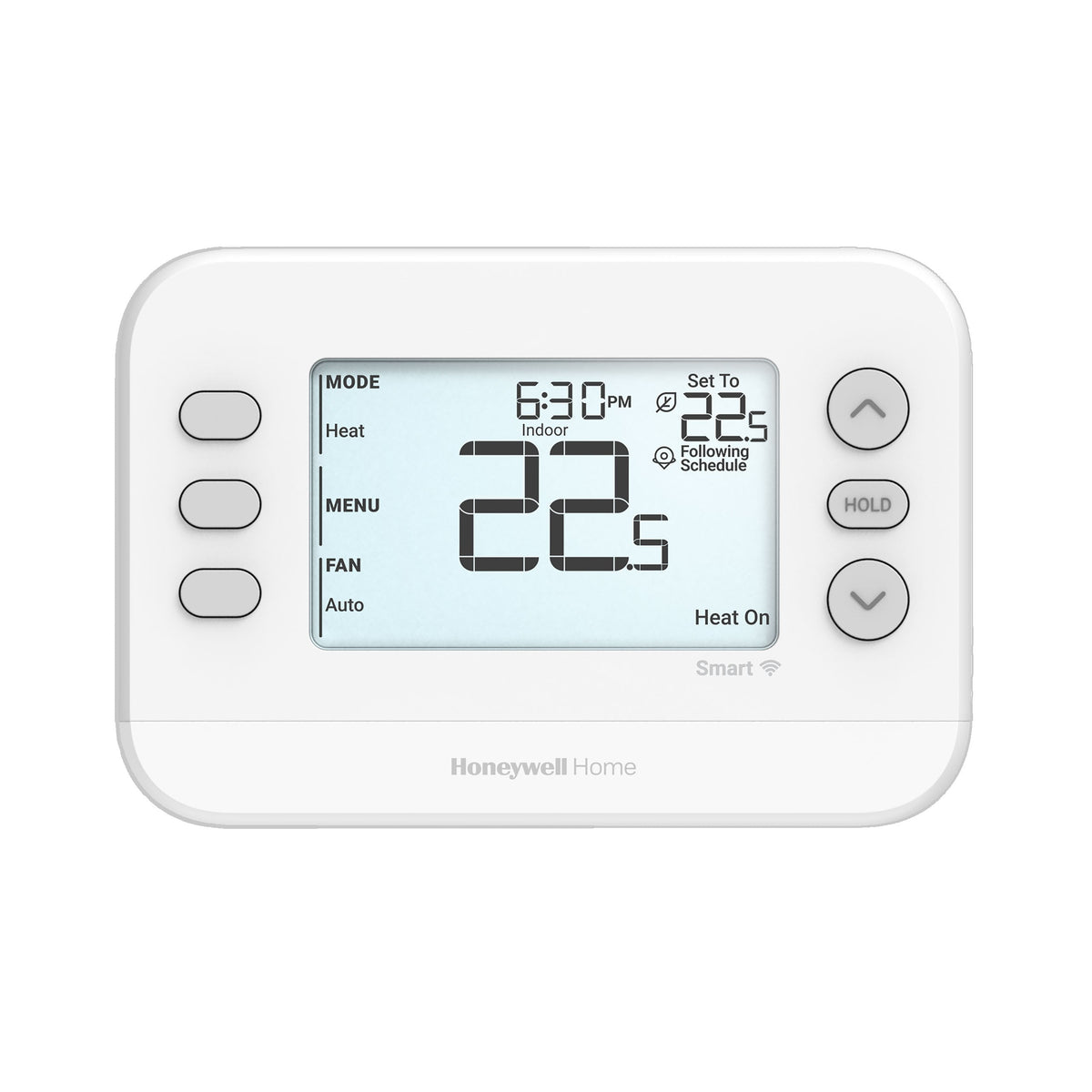

Honeywell Home TH2320WF4010/U FocusPRO Wi-Fi Smart Thermostat, 3H/2C

FocusPRO Wi-Fi smart thermostat for 3H/2C systems.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: TH2320WF4010/U
• Application: 24 Vac heat + cool systems. Gas, Oil, Electric, or Steam/Radiant hot water Systems, Heat pumps with Auxiliary Heat
• Thermostat Type: Smart, WiFi, Programmable, Digital
• Stages: Up to 3 Heat/2 Cool Heat Pumps, Up to 2 Heat/2 Cool Conventional Systems
• Display Type: LCD Screen
• Display Size: 4.84 sq. in.
• Display Language: English
• Displayed Information: Mode, Current Temperature, Set Temperature, Status Display, Fan, Time
• Modes of Operation: Heat, Off, Cool, Auto, Emergency Heat
• Program Type: 7-Day Programmable, 5-1-1 Programmable, 5-2 Programmable, 1 Week
• Energy Star Certified: Yes
• Alerts and Reminders: Heat Pump Failure, Filter Change
• Heat-Cool Changeover: Auto or Manual
• Power Supply: Hardwired
• Power Source: Hardwired
• Frequency: 60 Hz
• Warranty: 5 years
• Includes: Thermostat, UWP mounting plate, Decorative cover plate with J-box adaptor, Mounting hardware, Literature
• For Use With: C7089U1006 wired outdoor sensor
• WiFi: Yes
• Color: White
• Ambient Operating Temperature (Max): 120 °F, 49 °C
• Ambient Operating Temperature (Min): 32 °F, 0 °C
• Differential Temperature: ± 1 °F, ± 0.5 °C
• Operating Relative Humidity (Max): 90% RH, non-condensing
• Operating Relative Humidity (Min): 5% RH, non-condensing
• Temperature Accuracy: 1 °F, 0.5 °C
• Electrical Connection Type: UWP Mounting System
• Set point Temperature (Max): Heat: 90 °F, Cool: 99 °F, Heat: 32 °C, Cool: 37 °C
• Set point Temperature (Min): Heat: 32 °F, Cool: 50 °F, Heat: 0 °C, Cool: 10 °C
• Shipping and Storage Temperature (Max): 120 °F, 49 °C
• Shipping and Storage Temperature (Min): -20 °F, -29 °C
• Switch Type: Relay
• Product Height: 3.44 in, 87 mm
• Product Width: 5.13 in, 130 mm
• Product Depth: 1.188 in, 29.5 mm
• Features: ENERGY STAR Certified, Backlit Display, Filter Change Reminder
• UPC: 194159017467
• Country of Origin: MX
• Category: Smart Thermostats
