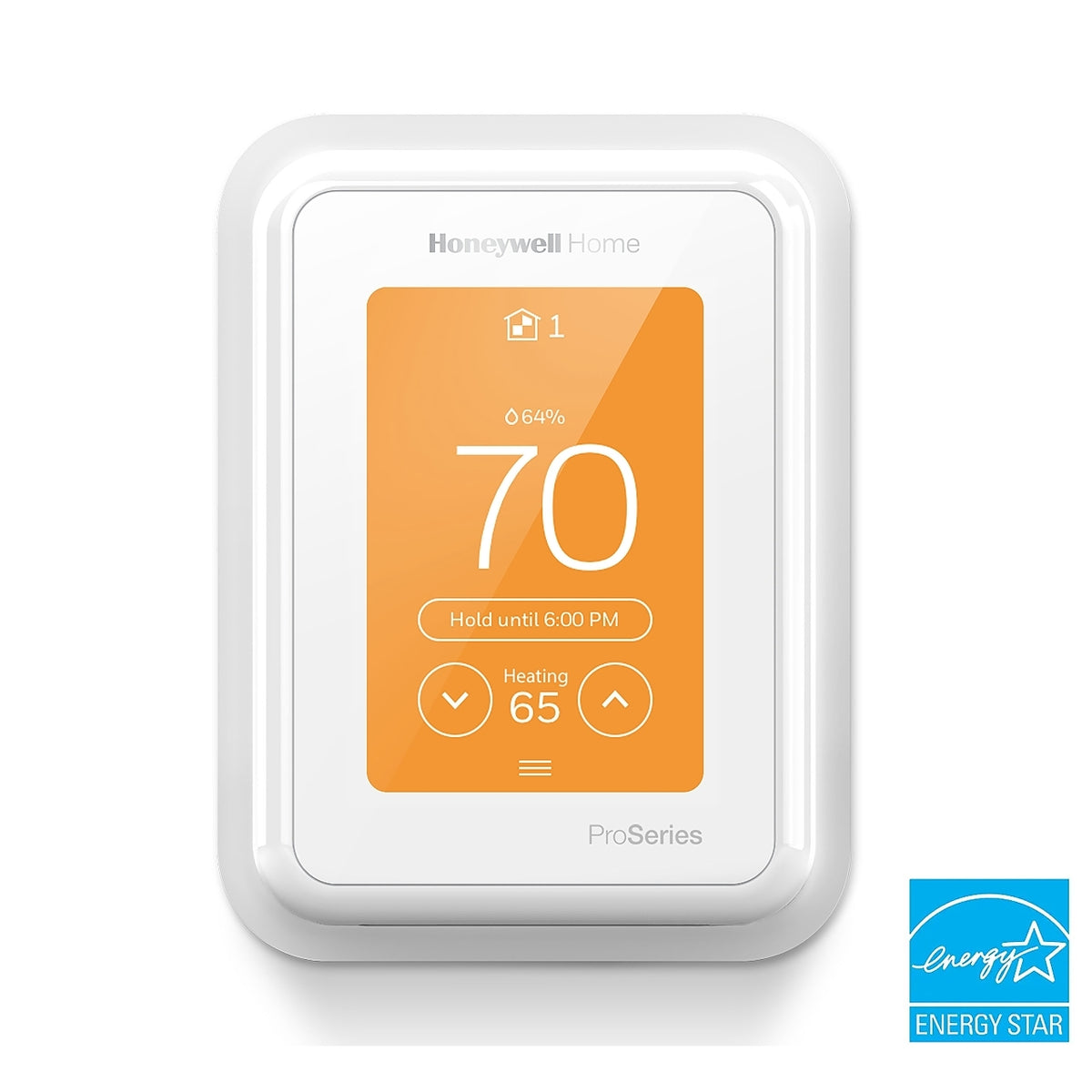

Honeywell Home YTHM1004R3000/U RedLINK 3.0 Kit with T10+ Thermostat and EIM 3.0

RedLINK 3.0 kit with a T10+ thermostat and EIM 3.0 equipment interface module.

Features

• RedLINK 3.0 Sensor Compatible
• Flexible Scheduling
• Location-based temperature control
• Time-based or Smart scheduling
• Smart Alerts:
• Adaptive Intelligent Recovery:
• Works with THP9045A wire-saver module

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: YTHM1004R3000/U
• Application: 24 Vac systems Heat Pump, Conventional, Gas, Oil, Electric, Steam / Gravity Systems & Dual Fuel
• Thermostat Type: Programmable, Low Voltage, Digital, WiFi
• Approvals and Standards: FCC: 47 CFR § 15.19 (a)(3), 47 CFR § 15.21 (USA only), 47 CFR § 15.105 (b), IC REGULATIONS: RSS-GEN
• Stages: Up to 3 Heat/2 Cool Heat Pump Systems, Up to 2 Heat/2 C Conventional Systems
• Smart Home Integration: Yes
• Display Size: 7.27 sq in
• Touchscreen: Yes
• Display Language: Display selectable for English, French, or Spanish
• Displayed Information: Indoor Temperature, Indoor Humidity, Menu Button, Down Button, Up Button, Status Display
• IAQ Capability: Humidification, Dehumidification, Ventialtion
• Modes of Operation: Heat, Cool, Emergency Heat, Dehumidify, Humidify
• Programming Features: Uses Sensors for Priority Scheduling, Geofencing
• Program Type: 1 Week, 5-1-1 Programmable, 5-2 Programmable, 7-Day Programmable, Manual / Not Programmed
• Energy Star Certified: Yes
• Alerts and Reminders: Battery Replacement, Communication Error, Dehumidifier Filter, EAC Post-filter, EAC Pre-filter, Filter Change 1, Filter Change 2, Heat Pump Failure, Humidifier Pad (through app), Internal Sensor Failure, UV Bulb 1, UV Bulb 2, Vent Core, Vent Filter, WiFi No Internet, WiFi Radio Error
• Heat-Cool Changeover: Auto, Manual
• Power Supply: Hardwired
• Frequency: 50 Hz, 60 Hz
• Warranty: 5 Years
• Occupancy Sensor: With some models

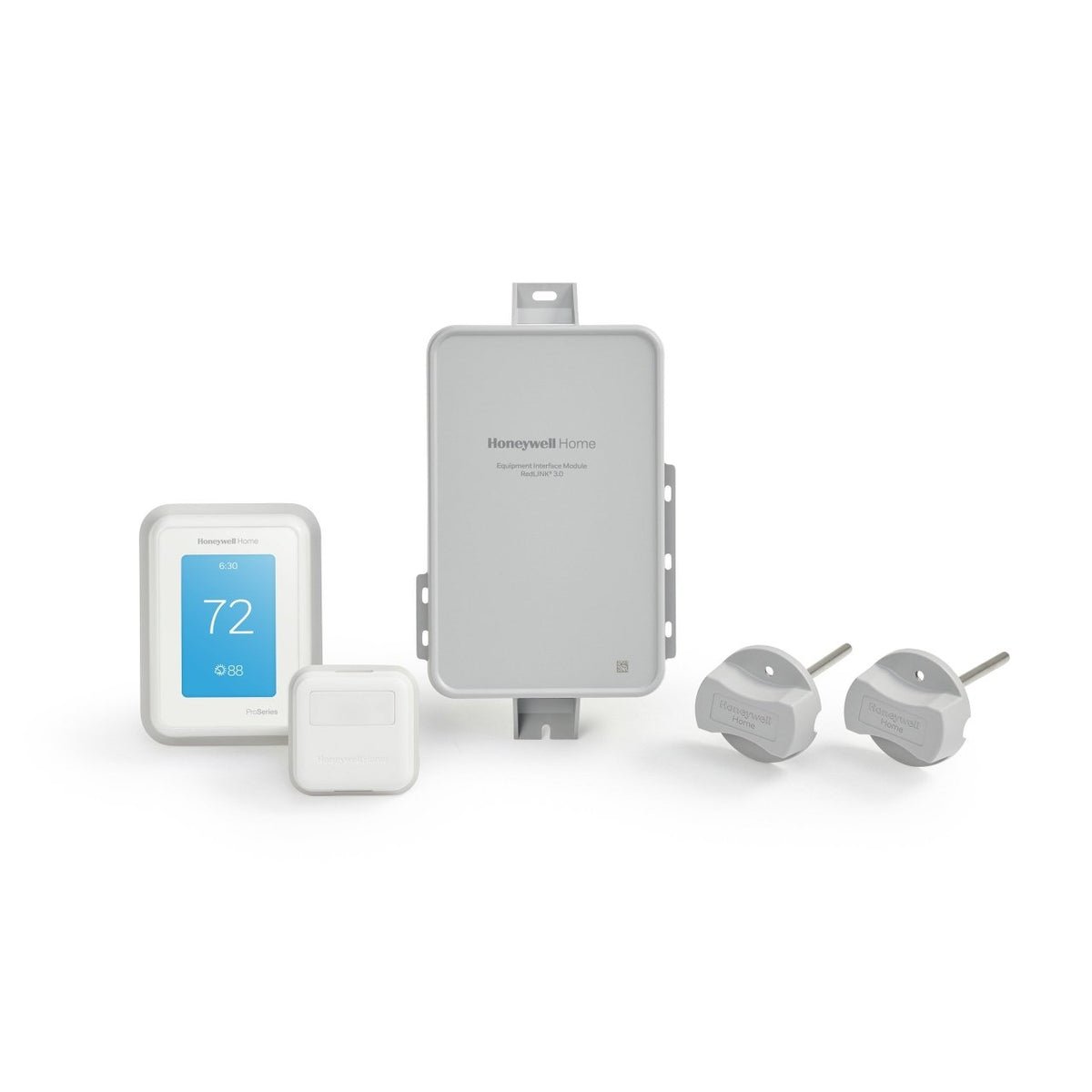

• Includes: T10+ Pro Smart Thermsotat, THM04R3000 EIM for T10+ only, Return Air Sensor, Supply Air Sensor, Wireless Indoor Sensor, UWP Mounting System, Cover plate, Mounting hardware
• Communication Type: WiFi
• WiFi: Yes
• WiFi Specifications: 802.11b, 802.11g, 802.11n, 2.4GHz range, 5GHz range
• Z-Wave: No
• Radio Frequency: 900 Mhz
• Radio Frequency Transmitting Range (Max): 200 ft
• RedLINK: Yes
• Color: White
• Sensor Type: Thermistor
• Ambient Operating Temperature (Max): 102 °F, 39 °C
• Ambient Operating Temperature (Min): 37 °F, 2.8 °C
• Differential Temperature: 1 ° of setpoint
• Operating Relative Humidity (Max): 90% Non-condensing
• Operating Relative Humidity (Min): 5% Non-condensing
• Backlight Options: Adjustable
• Fan Function: On, Auto, Circulating
• Compatible Sensor: Discharge Air Temperature Sensor, Outdoor Temperature Sensor, Room Temperature Sensor
• Demand Response: Yes
• Electrical Connection Type: UWP Mounting System
• Humidity Set point (Max): 90% RH
• Humidity Set point (Min): 0% RH
• Mounting Type: UWP Mounting System
• Power Supply Frequency: 50 Hz, 60 Hz
• Set point Temperature (Max): Heat: 90 °F, Cool: 99°F, Heat: 32 °C, Cool: 37 °C
• Set point Temperature (Min): Heat: 40 °F, Cool: 50 °F, Heat: 4.5 °C, Cool: 10 °C
• Shipping and Storage Temperature (Max): 120 °F, 49 °C
• Shipping and Storage Temperature (Min): -20 °F, -29 °C
• Mounting Location: Wall, Internal
• Switch Type: Relay
• Compatible App: First Alert App, Resideo App
• Product Height: 4.9 in, 125 mm
• Product Width: 3.7 in, 94 mm
• Product Depth: 0.93 in, 24 mm
• Features: Smart Response, ENERGY STAR Certified
• UPC: 194159012486
• Country of Origin: MX
• Category: Smart Thermostats
