Description

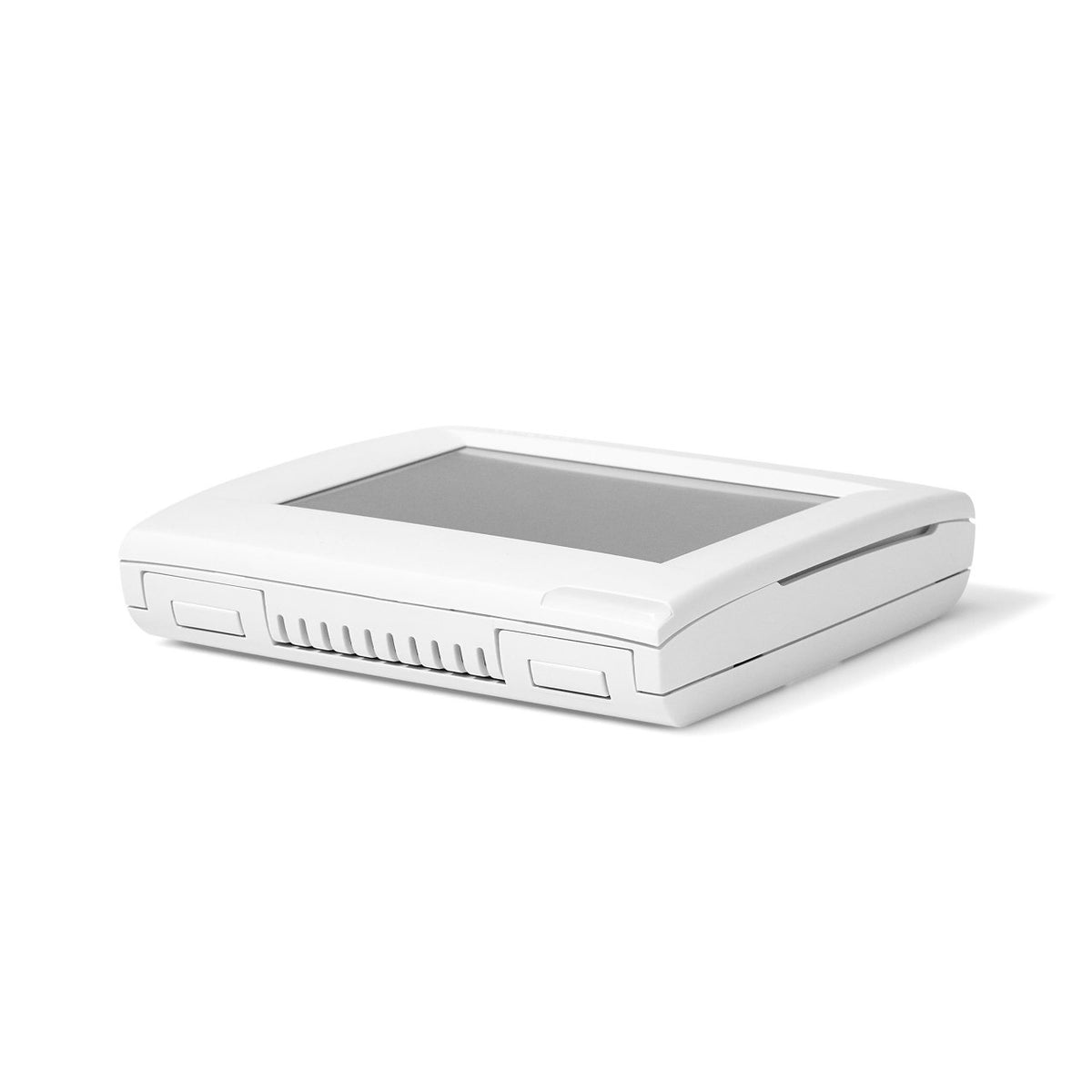

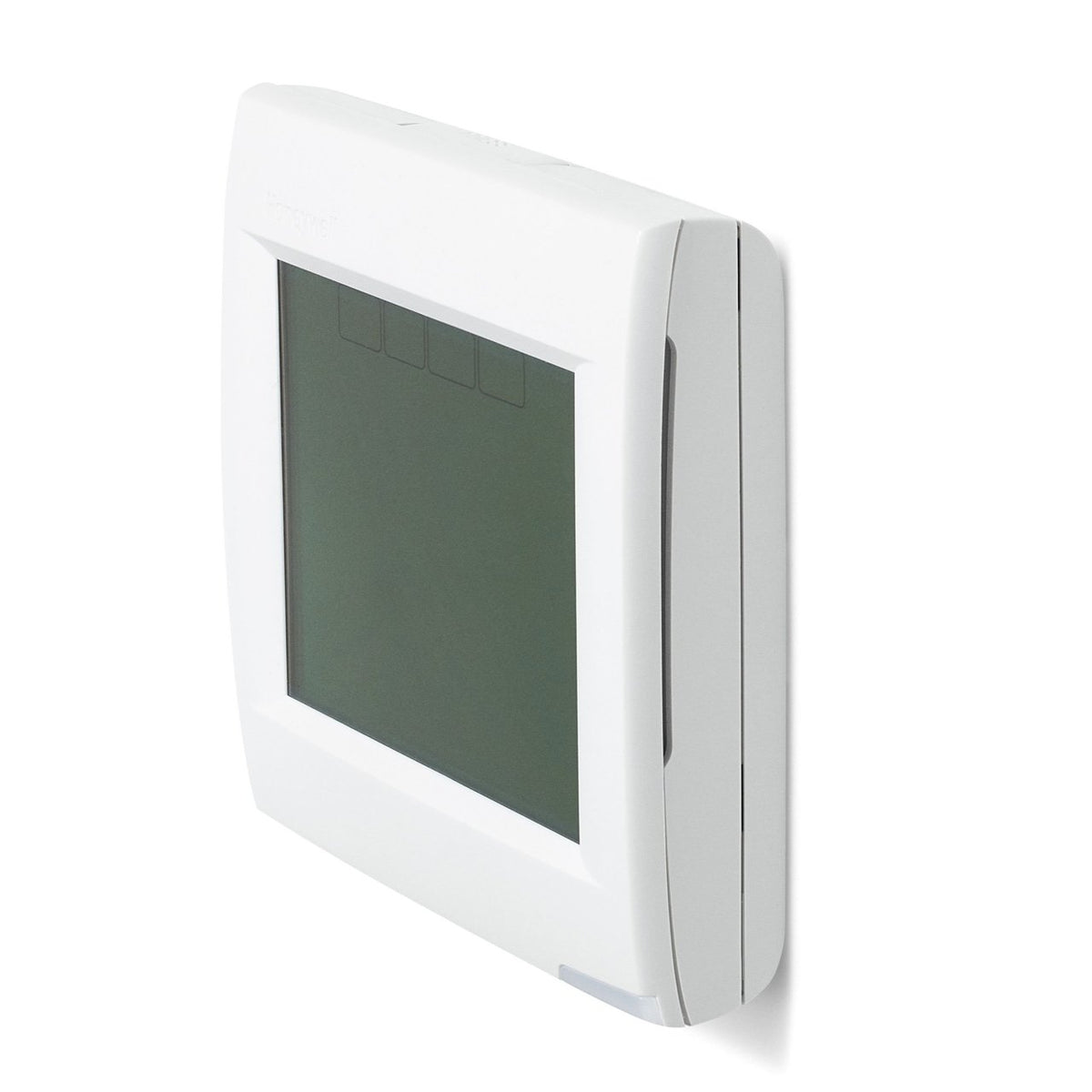

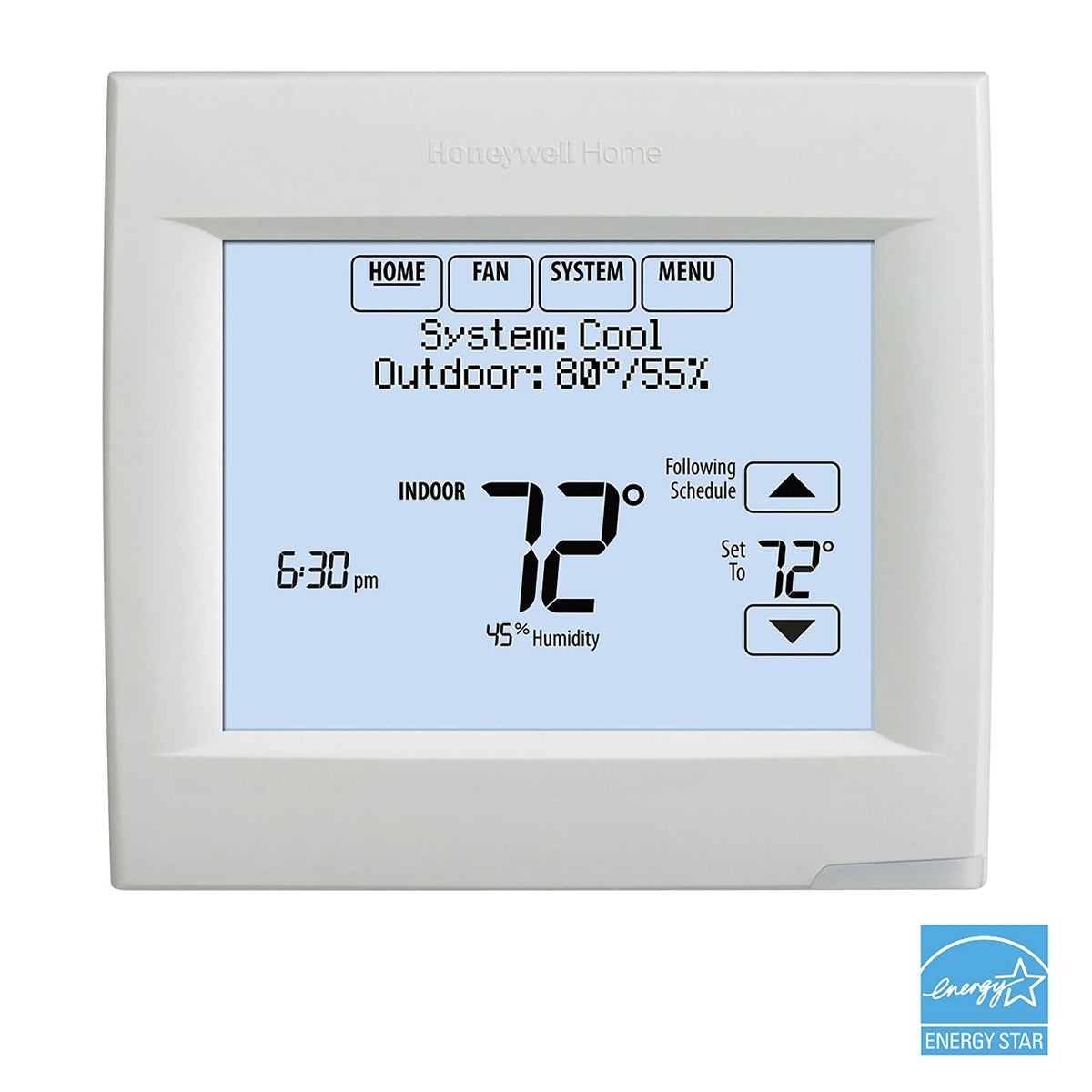

VisionPRO 8000 thermostat with RedLINK technology for residential or commercial use, 7-day programmable, up to 3H/2C heat pump or 2H/2C conventional, with universal IAQ contacts; kit includes the RedLINK Internet Gateway.
Features
- Standard display size 3.75 sq. in
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: YTH8321R1002/U
- Application: Conventional Systems, Heat Pumps with Auxiliary Heat
- Thermostat Type: Programmable, Digital, Low Voltage, RedLINK
- Stages: Up to 3 Heat/2 Cool Heat Pump Systems when used standalone, Up to 2 Heat/2 Cool Conventional Systems when used standalone, Up to 3 Heat/2 Cool Conventional Systems when used with the Equipment Interface Module., Up to 4 Heat/2 Cool Heat Pump Systems when used with the Equipment Interface Module.
- Smart Home Integration: No
- Display Type: Touch Screen
- Display Size: 10 sq in
- Touchscreen: Yes
- Modes of Operation: Heat, Off, Cool, Auto, Emergency Heat except model TH8110R1008
- Program Type: 7-Day Programmable, Manual / Not Programmed
- Energy Star Certified: Yes
- Power Supply: Hardwired
- Battery Type: Alkaline
- Number of Batteries: 4
- Battery Life: 1 Years
- Battery Size: AA
- Warranty: 5 Years
- Includes: TH8321R1001 VisionPRO® 8000 thermostat, THM6000R7001 RedLINK® Internet Gateway
- For Use With: Works standalone or with optional THM5421R1021 Equipment Interface Module and RedLINK® accessories
- Communication Type: RedLINK, WiFi
- WiFi: No
- WiFi Specifications: Internet Gateway THM6000R7001/U Provides WiFi Capabilities
- Z-Wave: No
- Z-Wave Specifications: Not Applicable
- RedLINK: Yes
- Color: Arctic White
- Ambient Operating Temperature (Max): 120 °F, 49 °C
- Ambient Operating Temperature (Min): 32 °F, 0 °C
- Operating Relative Humidity (Max): 90% Non-condensing
- Operating Relative Humidity (Min): 5% Non-condensing
- Backlight Options: Adjustable
- Fan Function: On, Auto, Circulating
- Clock Type: Year Clock
- Demand Response: No
- Electrical Connection Type: Screw terminals
- Mounting Type: Horizontal Mount
- Number of Fan Speeds: 2
- Power Supply Frequency: 50 Hz, 60 Hz
- Mounting Location: Wall, Internal
- Product Height: 4.63 in, 118 mm
- Product Width: 4.94 in, 126 mm
- Product Depth: 1.13 in, 29 mm
- Hazmat Information: LI metal Button Cell contained in Equipment *No Label is required*
- Features: ENERGY STAR Certified
- UPC: 085267364744
- Country of Origin: MX
- Category: Smart Thermostats
