Description

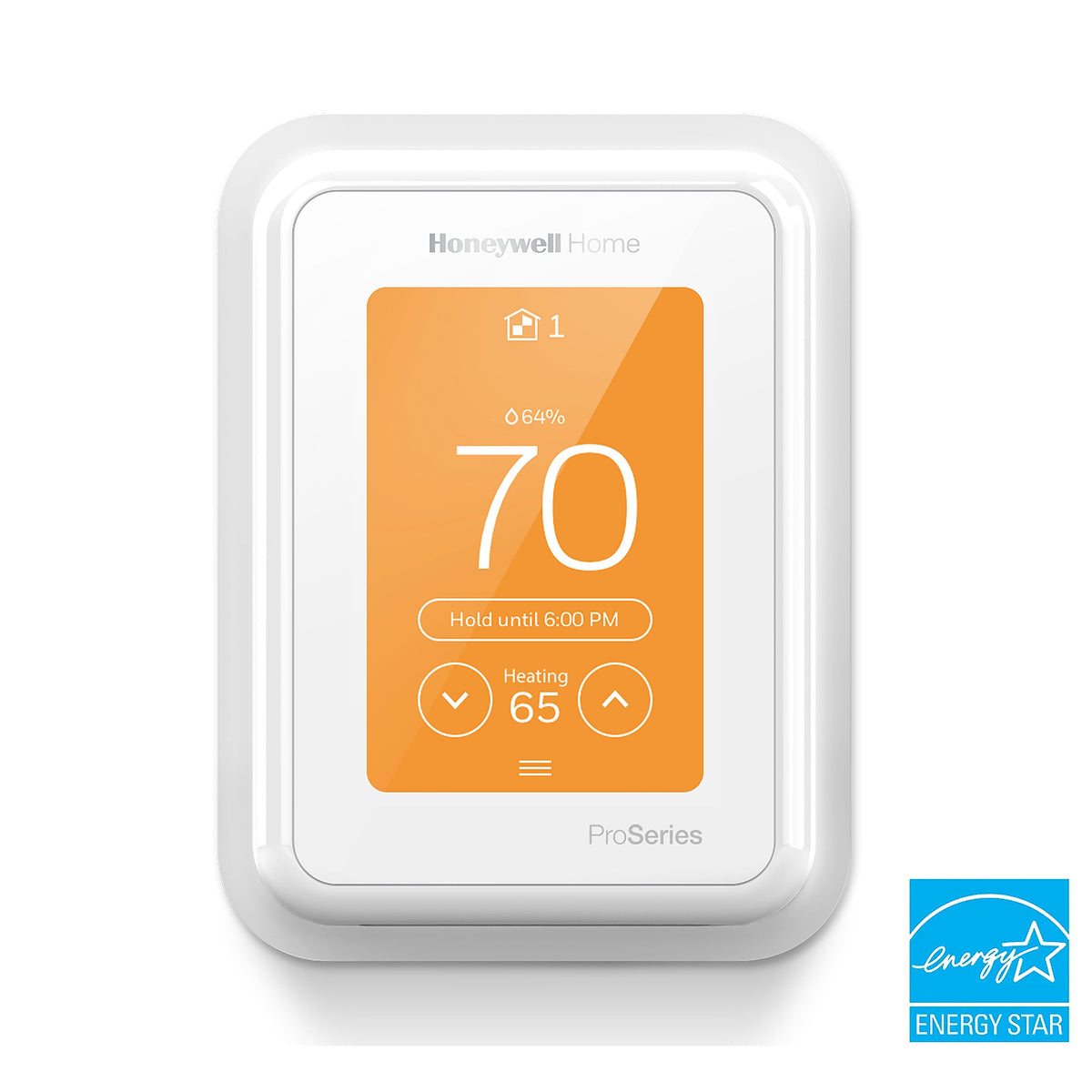

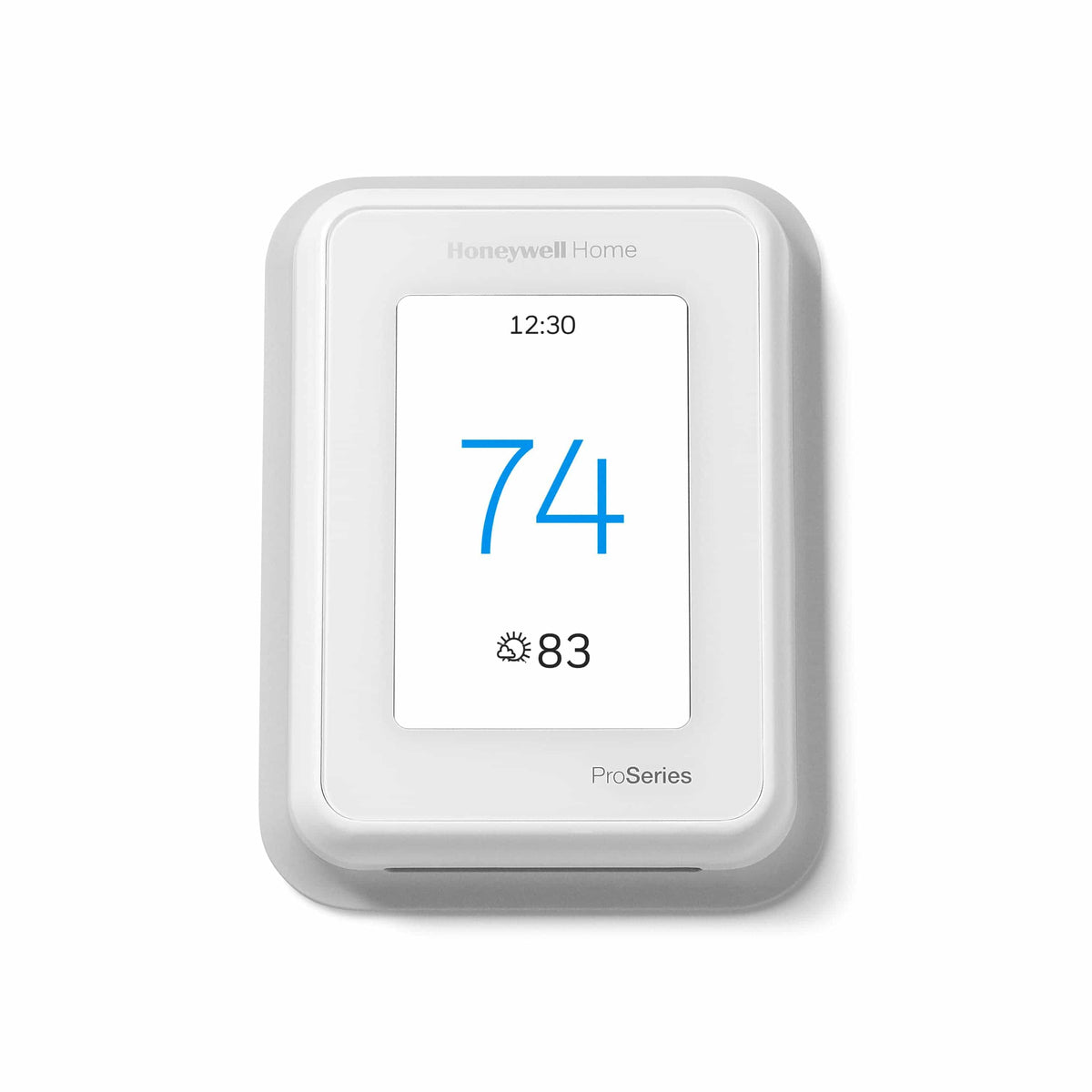

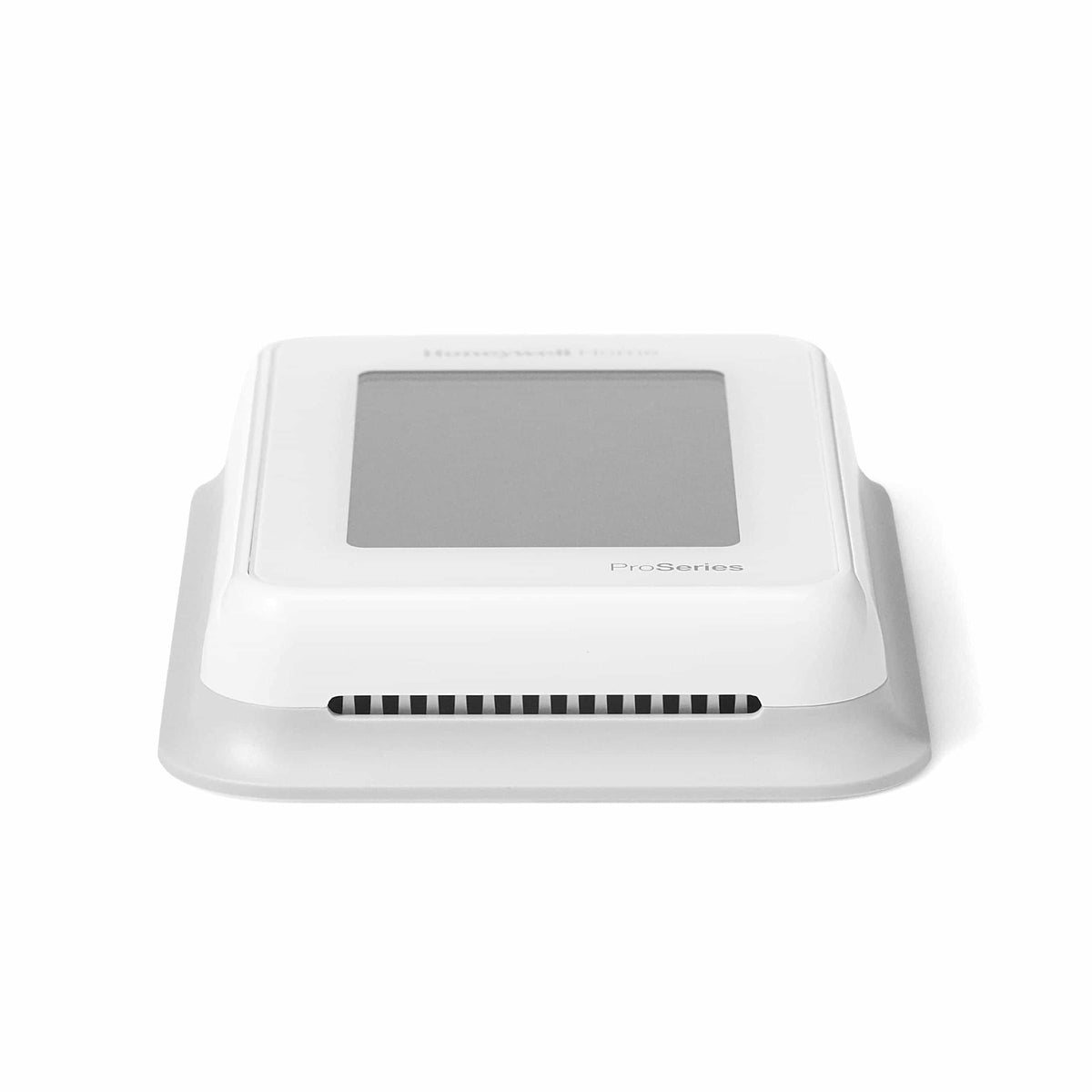

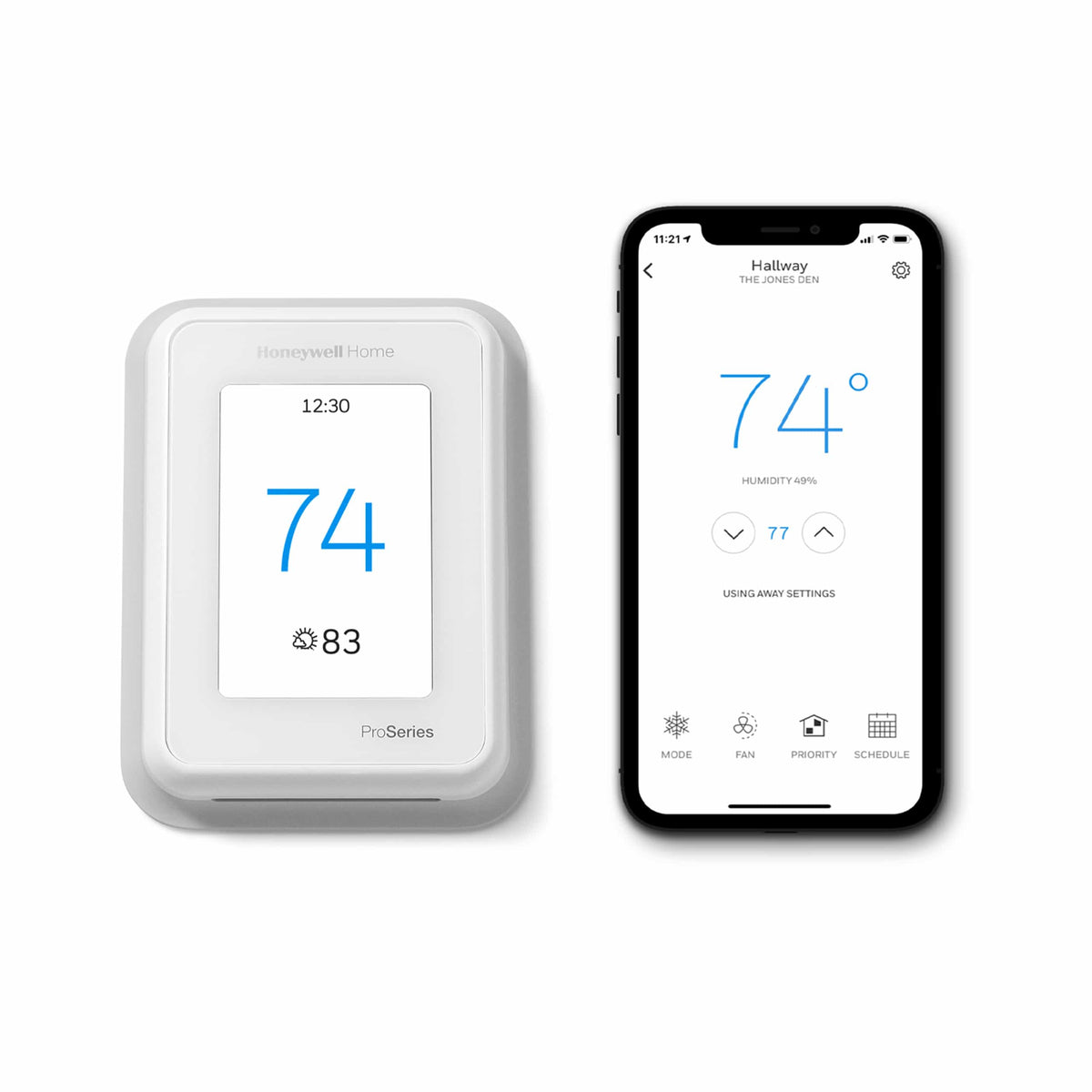

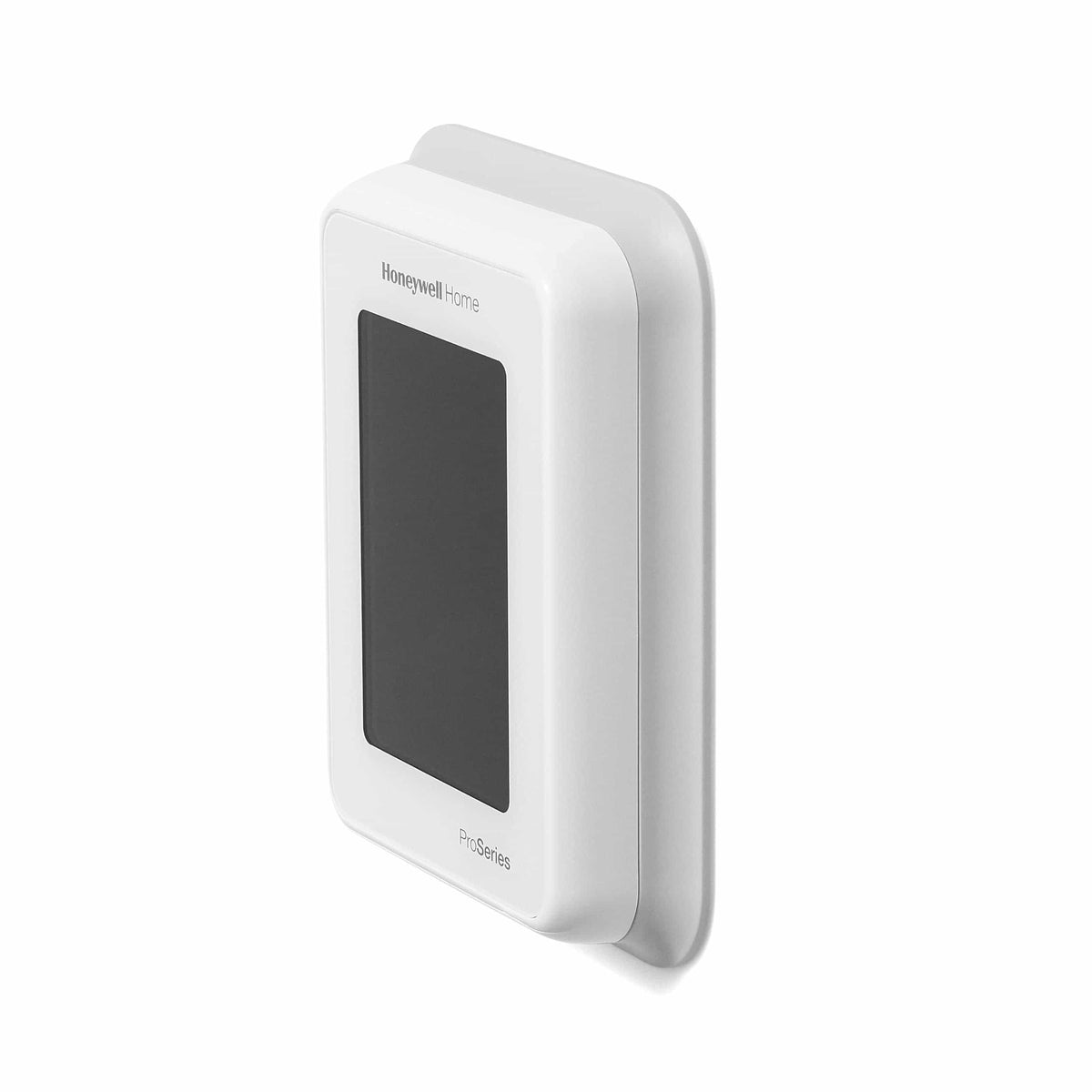

T10+ Wi-Fi thermostat, supplied with remote sensor.
Features
- Dual fuel and aux heat lockout
- Hot water systems including Series 20 and hot water coil
- Control a humidifier, dehumidifier, or ventilator
- Wired outdoor sensor or Internet weather
- Wireless indoor temperature, humidity, and motion sensors
- Geofence capable., electable ranges stops: min and max heat and cool
- DST enabled., 5-year warranty
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: THX321WFS3001W/U
- Application: 24 Vac systems Heat Pump, Conventional, Gas, Oil, Electric, Steam / Gravity Systems & Dual Fuel
- Thermostat Type: Programmable, Low Voltage, Digital, WiFi
- Approvals and Standards: FCC: 47 CFR § 15.19 (a)(3), 47 CFR § 15.21 (USA only), 47 CFR § 15.105 (b), IC REGULATIONS: RSS-GEN
- Stages: Up to 3 Heat/2 Cool Heat Pump Systems, Up to 2 Heat/2 Cool Conventional Systems
- Smart Home Integration: Yes
- Display Size: 7.27 sq in
- Touchscreen: Yes
- Display Language: Display selectable for English, French, or Spanish
- Displayed Information: Indoor Temperature, Indoor Humidity, Menu Button, Down Button, Up Button, Status Display
- IAQ Capability: Humidification, Dehumidification, Ventialtion
- Modes of Operation: Heat, Cool, Emergency Heat, Dehumidify, Humidify
- Programming Features: Uses Sensors for Priority Scheduling, Geofencing
- Program Type: 7-Day Programmable, 5-1-1 Programmable, 5-2 Programmable, 1 Week, Manual / Not Programmed
- Energy Star Certified: Yes
- Alerts and Reminders: Battery Replacement, Communication Error, Dehumidifier Filter, EAC Post-filter, EAC Pre-filter, Filter Change 1, Filter Change 2, Heat Pump Failure, Humidifier Pad (through app), Internal Sensor Failure, UV Bulb 1, UV Bulb 2, Vent Core, Vent Filter, WiFi No Internet, WiFi Radio Error
- Heat-Cool Changeover: Auto, Manual
- Power Supply: Battery, Hardwired
- Power Source: Hardwired
- Frequency: 50 Hz, 60 Hz
- Warranty: 5 Years
- Occupancy Sensor: With some models
- Includes: T10+ WiFi Thermostat, UWP Mounting System, Decorative Cover Plate, Screws and anchors, Professional Install Guide, Getting Started Guide, RedLINK 3.0 indoor sensors
- For Use With: THM04R3000 EIM, C7089R3013 Outdoor Sensor
- Communication Type: WiFi
- WiFi: Yes
- WiFi Specifications: 802.11b, 802.11g, 802.11n, 2.4GHz range, 5GHz range
- Z-Wave: No
- Radio Frequency: 900 Mhz
- Radio Frequency Transmitting Range (Max): 200 ft
- RedLINK: Yes
- Color: White
- Sensor Type: Thermistor
- Ambient Operating Temperature (Max): 102 °F, 39 °C
- Ambient Operating Temperature (Min): 37 °F, 2.8 °C
- Operating Relative Humidity (Max): 90% Non-condensing
- Operating Relative Humidity (Min): 5% Non-condensing
- Backlight Options: Adjustable
- Fan Function: On, Auto, Circulating
- Compatible Sensor: Discharge Air Temperature Sensor, Outdoor Temperature Sensor, Room Temperature Sensor
- Demand Response: Yes
- Electrical Connection Type: UWP Mounting System
- Humidity Set point (Max): 90% RH
- Humidity Set point (Min): 0% RH
- Mounting Type: UWP Mounting System
- Power Supply Frequency: 50 Hz, 60 Hz
- Set point Temperature (Max): Heat: 90 °F, Cool: 99°F, Heat: 32 °C, Cool: 37 °C
- Set point Temperature (Min): Heat: 40 °F, Cool: 50 °F, Heat: 4.5 °C, Cool: 10 °C
- Shipping and Storage Temperature (Max): 120 °F, 49 °C
- Shipping and Storage Temperature (Min): -20 °F, -29 °C
- Mounting Location: Wall, Internal
- Switch Type: Relay
- Compatible App: First Alert App, Resideo App
- Product Height: 4.9 in, 125 mm
- Product Width: 3.7 in, 94 mm
- Product Depth: 0.93 in, 24 mm
- Features: ENERGY STAR Certified, WiFi, Smart Response
- UPC: 194159012431
- Country of Origin: MX
- Category: Smart Thermostats
