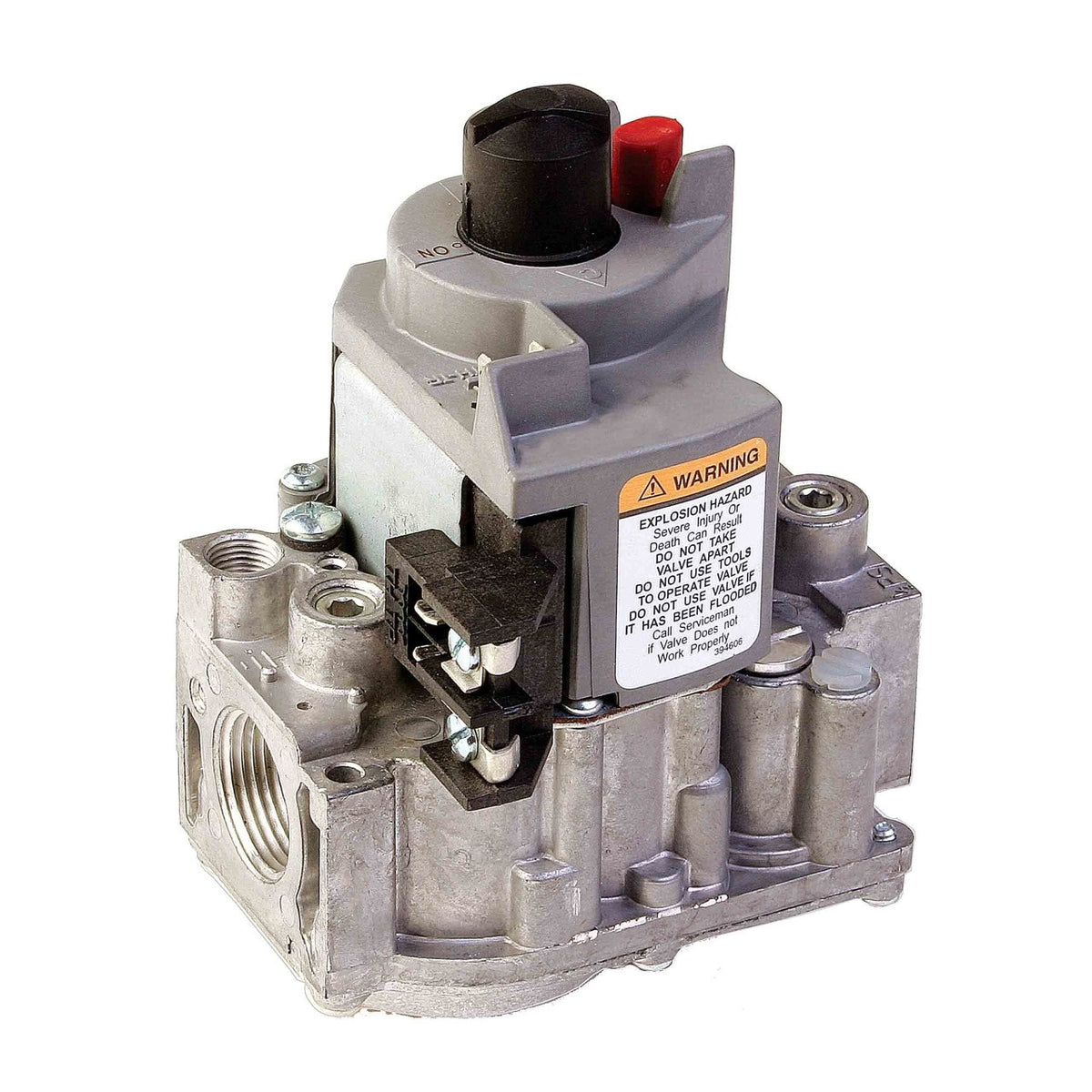

Resideo VR8300C4035/U Standing Pilot Gas Valve, Step Opening, 3/4 in x 3/4 in, 10 in WC Full Rate

Item #: HONE-VR8300C4035/U
Mfr. part #: VR8300C4035/U
UPC: 085267114066

$353.89

Free shipping on orders $99+
30-day returns on unused items. Details
Secure checkout

Shipping details

Shipping weight: 2.4 lb
Box size: 6.95 × 6 × 3.55 in

Installation by a licensed gas technician is required. Confirm the part against your appliance's parts list.

Need help with this part?

(404) 678-9908 Chat with a product specialist Request a quote

Brand	Resideo
Manufacturer part #	VR8300C4035/U
UPC	085267114066

Standing pilot gas valve with step opening and 3/4 in x 3/4 in connections, regulator set at 10 in WC full rate and 2.5 in WC step.

Features

Lite-Rite (OFF-PILOT-ON) lighting sequence

Specifications

Brand: Resideo (Honeywell Home)
Manufacturer Part #: VR8300C4035/U
Application: Single-Stage Step Opening Valve for Standard Pilot
Ignition Type: Standing Pilot
Type of Fuel: LPG
Capacity (Min): 30,000 BTU/h
Operating Voltage: 24 V AC
Inlet Connection Size: 3/4 in
Outlet Connection Size: 3/4 in
Regulation Type: Step Opening
Pressure Rating: 1/2 psi, 3.5 kPa
Operating Pressure (Max): 1/2 psi
Valve Body Pattern: Straight Through with Flange, Straight Through with Integral Tapping
Ambient Operating Temperature (Max): 175 °F, 79 °C
Ambient Operating Temperature (Min): 0 °F, -18 °C
Approvals and Standards: UL Component Recognized MCCZ2.MH5323, CSA International: 112395, Australian Gas Association: 4717
Color: Black, Gray
Mounting Type: 0° to 90° in any direction from the upright position of the gas control knob, including vertically
Operating Frequency: 60 Hz
Pilot Gas Outlet: Compression Fitting for 1/4 in OD Tubing
Product Height: 5.38 in, 135 mm
Product Width: 4.06 in, 104 mm
UPC: 085267114066
Country of Origin: MX
Category: Gas Valves
