Description

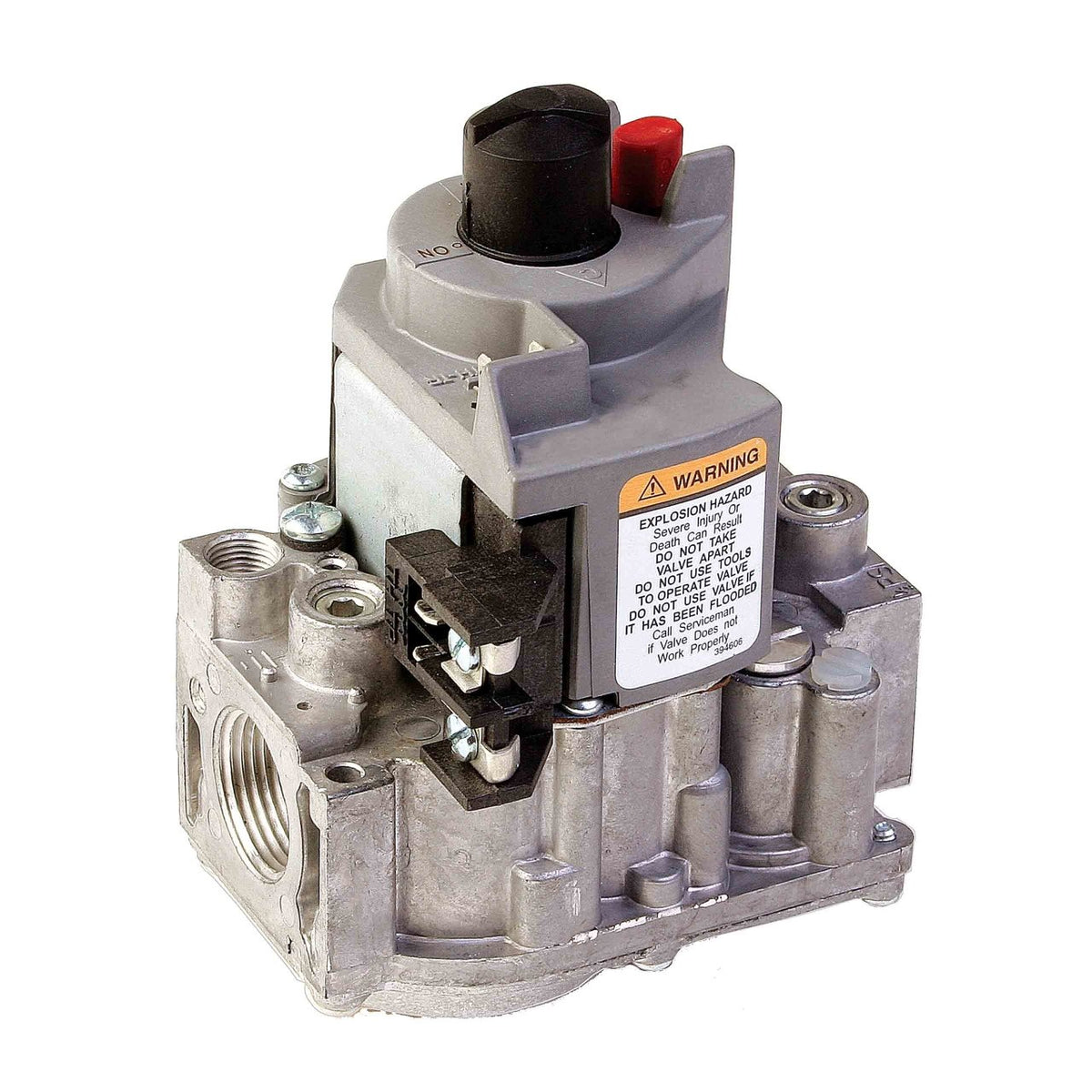

Standing pilot gas valve with step opening and 3/4 in x 3/4 in connections, regulator set at 3.5 in WC full rate and 0.9 in WC step, supplied with two reducer bushings.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: VR8300C4506/U
- Application: Single-Stage Step Opening Valve for Standard Pilot
- Ignition Type: Standing Pilot
- Type of Fuel: Natural Gas
- Regulator: Step
- Capacity (Max): 300,000 BTU/h Natural Gas
- Capacity (Min): 30,000 BTU/h Natural Gas
- Operating Voltage: 24 V AC
- Inlet Connection Size: 3/4 in
- Outlet Connection Size: 3/4 in
- Regulation Type: Step Opening
- Pressure Rating: 1/2 psi, 3.5 kPa
- Includes: Two 3/4 in x 1/2 in Reducer Brushings
- Valve Body Pattern: Straight Through with Flange
- Ambient Operating Temperature (Max): 175 °F, 79 °C
- Ambient Operating Temperature (Min): 0 °F, -18 °C
- Approvals and Standards: UL Component Recognized MCCZ2.MH5323, CSA International: 112395, Australian Gas Association design certificate: 4717
- Mounting Type: 0° to 90° in any direction from the upright position of the gas control knob, including vertically
- Operating Frequency: 60 Hz
- Pilot Gas Outlet: Compression fitting for 1/4 in. OD tubing
- Product Height: 5.38 in
- Product Length: 2.69 in
- Product Width: 4.06 in
- UPC: 085267114141
- Country of Origin: MX
- Category: Gas Valves
