Description

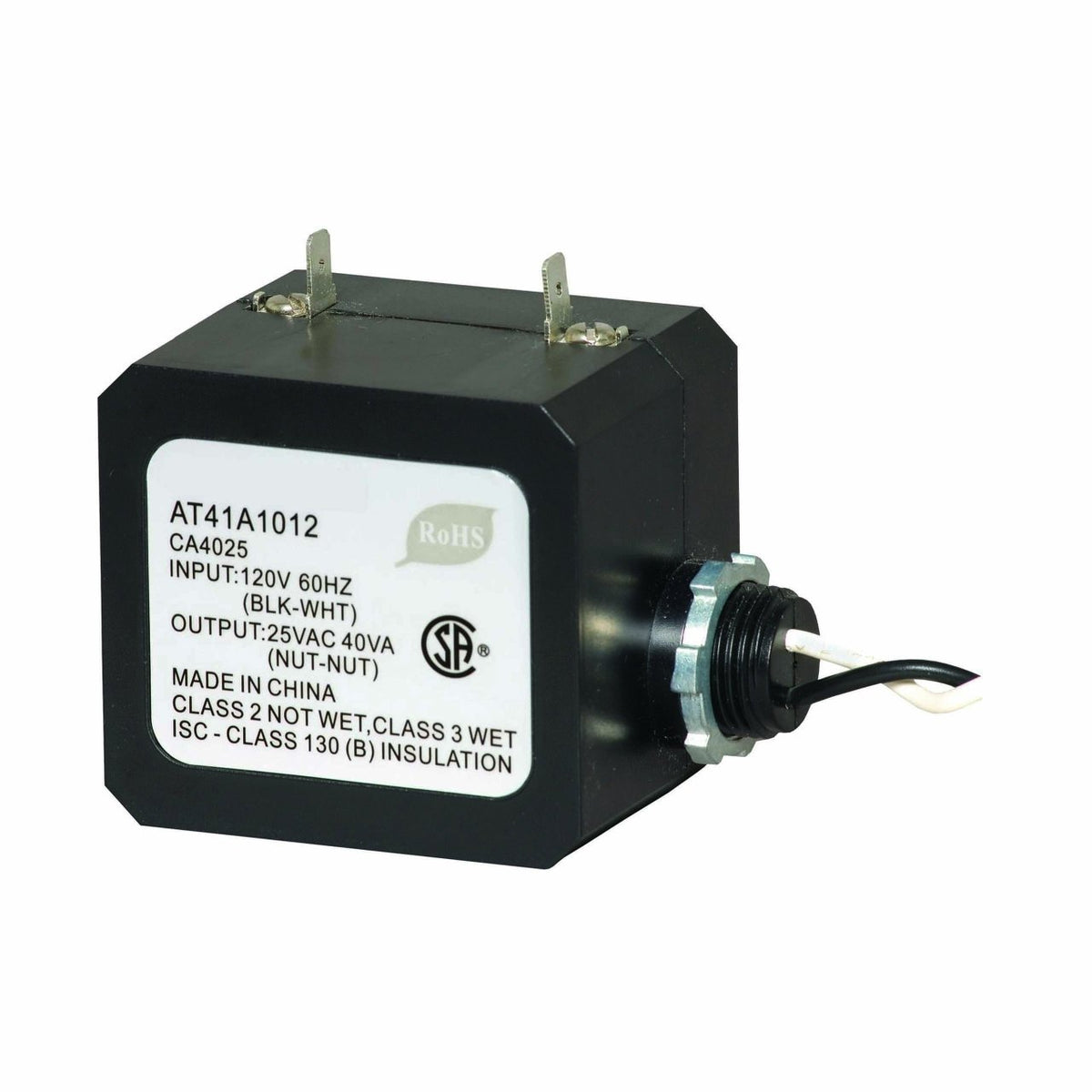

40 VA, 120/24 V energy-limiting Class 2 transformer with 1/2 in conduit nipple mounting, 7 in primary leads and screw/quick-connect secondary terminals.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: AT41A1012/U
- Primary Connection Size: 7 in, 178 mm
- Primary Connection Type: Leadwires
- Primary Input Voltage: 120 V ac
- Secondary Connection Type: Screw/quick-connect secondary
- Secondary Open Circuit Voltage: 24 V.O.C.
- VA Rating: 40 VA
- Frequency: 50 Hz; 60 Hz
- Ambient Operating Temperature (Max): 105 °F, 41 °C
- Ambient Operating Temperature (Min): -20 °F, -29 °C
- Product Height: 2 in, 50.5 mm
- Product Width: 2.25 in, 57 mm
- UPC: 085267767545
- Country of Origin: CN
- Category: Transformers
