Description

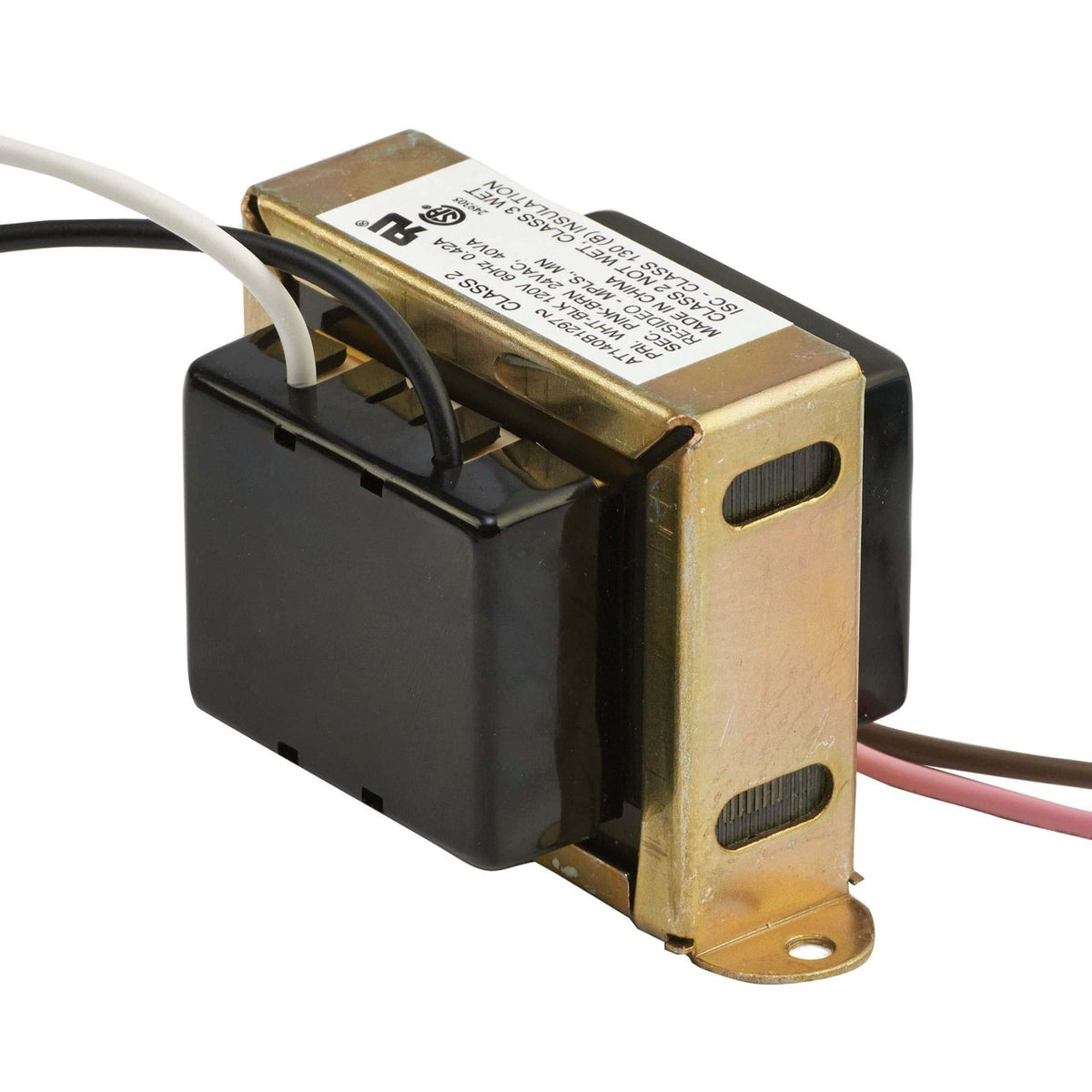

Transformer rated 120/208/240 V, the same as the AT150B1146 except with plastic end caps.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: AT150B1237/U
- NEMA Rating: No
- Primary Connection Size: 9 in, 229 mm
- Primary Connection Type: Leadwires: Black - COM; White - 120 V; Red - 208 V; Orange - 240 V
- Primary Input Voltage: 120/208/240 V ac
- Secondary Connection Size: 9 in, 229 mm
- Secondary Connection Type: Leadwires with 1/4 in. male quick-connects with plastic (2) end covers
- Secondary Open Circuit Voltage: 27.5 V.O.C.
- VA Rating: 50 VA
- Frequency: 60 Hz
- Approvals and Standards: UL Component Recognized: B, D, E models. File# E14881, CSA Certified: A & B models, NEC Class 2
- Includes: Plastic end caps
- Ambient Operating Temperature (Max): 105 °F, 41 °C
- Ambient Operating Temperature (Min): -20 °F, -29 °C
- Product Height: 1.69 in, 43 mm
- Product Width: 3.5 in, 89 mm
- UPC: 085267149884
- Country of Origin: CN
- Category: Transformers
