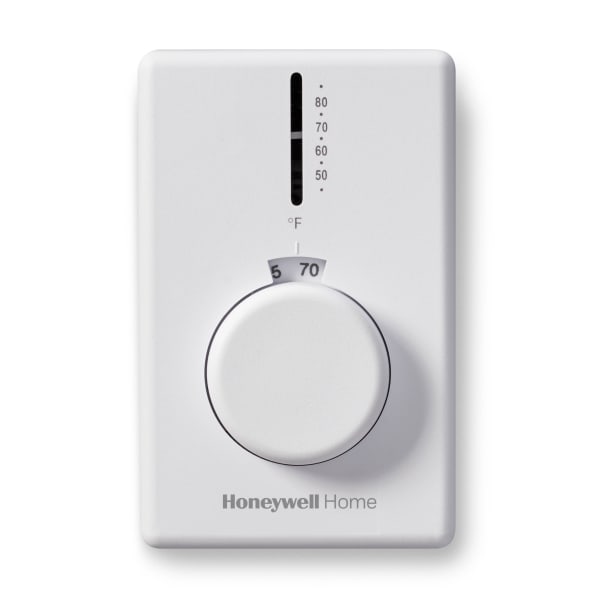

The T4398A1021 is a non-programmable thermostat from Honeywell Home.
A non-programmable thermostat holds one setpoint until someone changes it. That is the whole design, and it is the right design more often than the market admits: in a shop, a rental, a spare room or anywhere occupancy has no schedule, a programmable stat gets overridden permanently within a week and then behaves like this one with extra steps.
This is a line-voltage thermostat for electric resistance heat. It carries the heater current itself rather than switching a 24 V control circuit, and it is not interchangeable with a low-voltage stat.
Where it hangs decides what it reads. A thermostat measures the air touching it and nothing else, so an interior wall about five feet up, out of direct sun, away from supply registers and doorway drafts, and clear of the back of a wall carrying hot water or flue pipe. Most complaints that a stat is “off by three degrees” are placement, not calibration — the stat is reading the truth about a spot nobody lives in.
Confirm the system type before ordering — low voltage, line voltage and millivolt thermostats look similar and are not interchangeable.
-
Brand: Honeywell Home
-
Manufacturer Part #: T4398A1021/U
-
Type: Non-programmable thermostat
-
System: Line voltage
-
Shipping weight: 0.5 lb
-
Category: Thermostats
Replacement
The manufacturer has discontinued this model. Recommended replacements:
Full Specifications
| Application |
Electric Baseboards, Convectors and Fan-forced Heaters (Resistive Rated Loads) |
| Thermostat Type |
Non programmable |
| Approvals and Standards |
CSA Listed: File No. LR1322, UL Listed; File No. E4436, Guide No. XAPX |
| Stages |
1 Heat |
| Smart Home Integration |
No |
| Touchscreen |
No |
| Warranty |
1 Year |
| Includes |
Thermometer, Range stops and locking cover screws |
| WiFi |
No |
| Z-Wave |
No |
| RedLINK |
No |
| Color |
Premier White® |
| Differential Temperature |
2 °F, 1 °C |
| Demand Response |
No |
| Temperature Accuracy |
1 °C, 2 °F |
| Mounting Type |
Vertical Mount |
| Product Height |
4.5 in, 115 mm |
| Product Width |
2.88 in, 73 mm |
| Product Depth |
2.63 in, 67 mm |
| Hazmat Information |
UN 2037, RECEPTACLES, SMALL, CONTAINING GAS, 2.1 - Limited Quantity |
