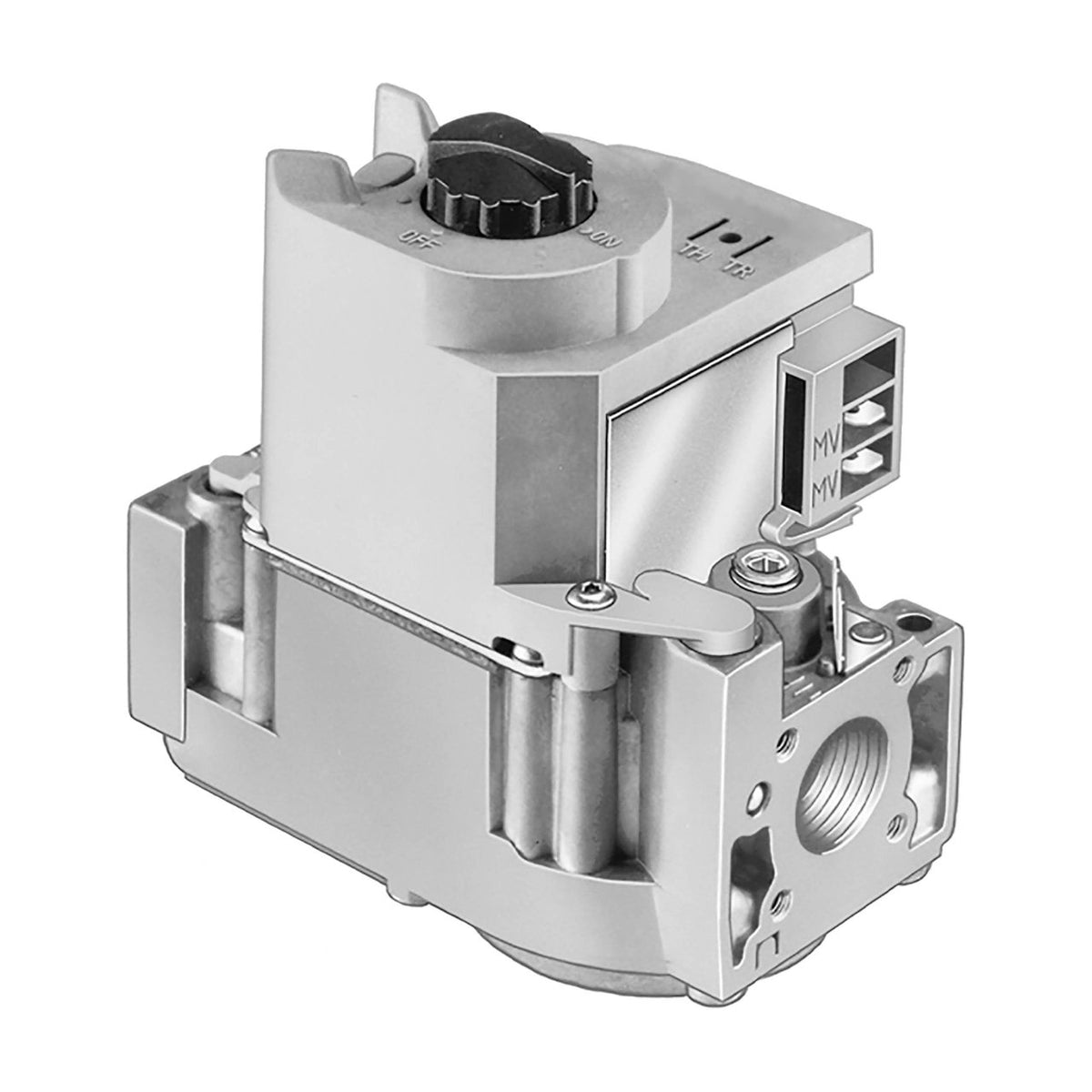

Resideo VR8205H1003/U Direct Ignition Gas Valve, Slow Opening, 1/2 in x 1/2 in, 3.5 in WC

Item #: HONE-VR8205H1003/U
Mfr. part #: VR8205H1003/U
UPC: 085267113403

$210.69

Free shipping on orders $99+
30-day returns on unused items. Details
Secure checkout

Shipping details

Shipping weight: 1.8 lb
Box size: 5.95 × 4.9 × 3.35 in

Installation by a licensed gas technician is required. Confirm the part against your appliance's parts list.

Need help with this part?

(404) 678-9908 Chat with a product specialist Request a quote

Brand	Resideo
Manufacturer part #	VR8205H1003/U
UPC	085267113403

Direct ignition gas valve with slow opening, 1/2 in x 1/2 in connections and regulator set at 3.5 in WC.

Features

ON-OFF Lighting Sequence

Specifications

Brand: Resideo (Honeywell Home)
Manufacturer Part #: VR8205H1003/U
Application: Single-Stage Slow Opening Valve for Direct Burner Ignition
Ignition Type: Direct Burner Ignition
Type of Fuel: Natural Gas
Regulator: Slow
Capacity (Max): 200,000 BTU/h Natural Gas
Capacity (Min): 20,000 BTU/h Natural Gas
Operating Voltage: 24 V AC
Inlet Connection Size: 1/2 in
Outlet Connection Size: 1/2 in
Regulation Type: Slow Opening
Operating Pressure (Max): 1/2 psi, 3.5 kPa
For Use With: S89C, S89E, S89F, S87 Series 5 and later
Valve Body Pattern: Straight Through
Ambient Operating Temperature (Max): 175 °F, 79 °C
Ambient Operating Temperature (Min): 0 °F, -18 °C
Approvals and Standards: UL Component Recognized MCCZ2.MH5323, CSA International: 112395, Australian Gas Association: 4752
Color: Black, Gray
Mounting Type: 0° to 90° in any direction from the upright position of the gas control knob, including vertically
Operating Frequency: 60 Hz
Product Height: 4.94 in, 125 mm
Product Width: 4.13 in, 104 mm
UPC: 085267113403
Country of Origin: MX
Category: Gas Valves
