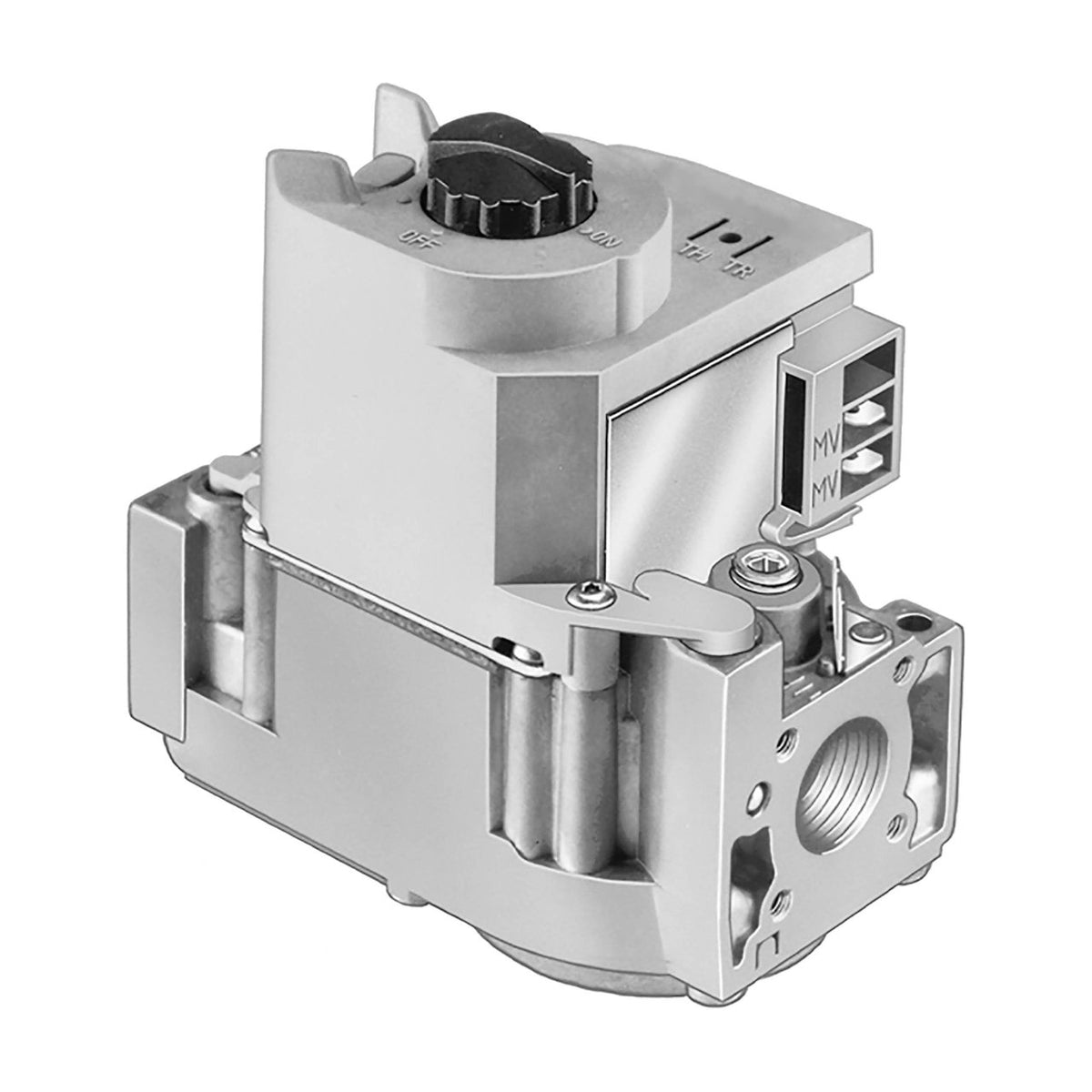

Resideo VR8205M2823T/U Direct Ignition Single Stage Gas Valve, Standard Opening, 1/2 in x 1/2 in, 3.5 in WC

Item #: HONE-VR8205M2823T/U
Mfr. part #: VR8205M2823T/U
UPC: 085267461672

$169.50

Free shipping on orders $99+
30-day returns on unused items. Details
Secure checkout

Shipping details

Shipping weight: 1.8 lb
Box size: 5.8 × 4.7 × 3.1 in

Installation by a licensed gas technician is required. Confirm the part against your appliance's parts list.

Need help with this part?

(404) 678-9908 Chat with a product specialist Request a quote

Brand	Resideo
Manufacturer part #	VR8205M2823T/U
UPC	085267461672

VR8205M2823T has been discontinued by the manufacturer (2020-06). Direct replacement: VR8245M2530 - 24 VAC Dual Intermittent Pilot Gas Valve.

Single stage direct ignition gas valve with standard opening, 1/2 in x 1/2 in connections and 3.5 in WC setting.

Features

ON-OFF Lighting Sequence

Specifications

Brand: Resideo (Honeywell Home)
Manufacturer Part #: VR8205M2823T/U
Application: Single-Stage Standard Opening Valve for Direct Burner Ignition
Ignition Type: Direct Burner Ignition
Type of Fuel: Natural Gas
Capacity (Min): 20,000 BTU/h
Operating Voltage: 24 V AC
Inlet Connection Size: 1/2 in
Outlet Connection Size: 1/2 in
Regulation Type: Standard Opening
Operating Pressure (Max): 1/2 psi, 3.5 kPa
For Use With: S89C, S89E, S89F, S87 Series 5 and later
Valve Body Pattern: Straight Through
Ambient Operating Temperature (Max): 175 °F, 79 °C
Ambient Operating Temperature (Min): -40 °F, -40 °C
Approvals and Standards: UL Component Recognized MH5323, CSA International: 112395, Australian Gas Association design certificate: 4214, Approved for Delta C Applications
Color: Black, Gray
Mounting Type: 0° to 90° in any direction from the upright position of the gas control knob, including vertically
Operating Frequency: 50 Hz, 60 Hz
Product Height: 4.63 in, 117 mm
Product Weight: 0.36 lb
Product Width: 4.13 in, 104 mm
UPC: 085267461672
Country of Origin: MX
Category: Gas Valves
